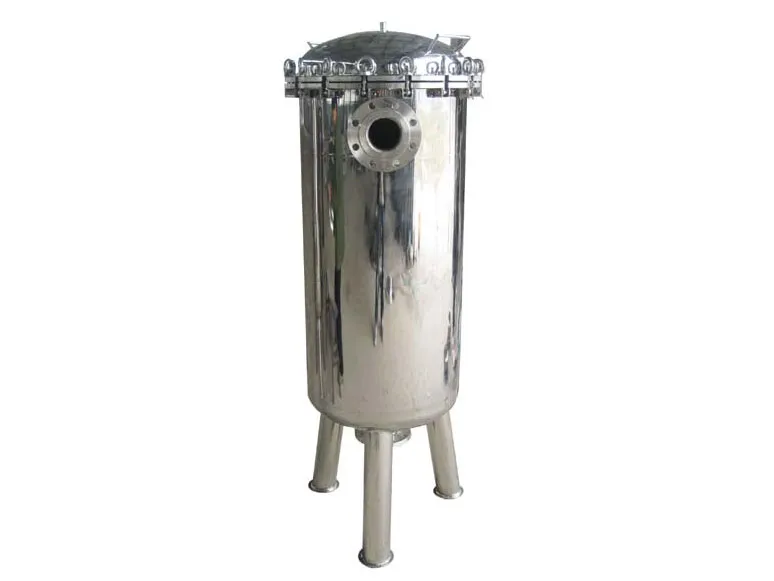

Multi-Bag Filter Housing

Multi-bag filter housing is used for coarse filtration and pre-filtration. This filtration system comes standard with No. 01 or No. 02 filter bag. 2 to 12 filter bags can be equipped for standard models. 24 filter bags at maximum can be installed on the filter to meet various types of flow requirements.

Multi-bag filter housings can be used in many applications as below:

• Food and beverage
• Biological engineering and pharmaceutical
• Petrochemical and chemical
• Automobile manufacturing
• Petroleum and natural gas
• Electronic and natural gas
• Coating, paint, printing ink
• Nuclear power, thermal power and waste water filtration
• Liquid and gas purification

• Ensures high service life due to high flow and particulate holding capacity
• Compact design reduces occupied floor space and the loss of liquid.
• Side entry and bottom out ensure that liquid medium can be completely discharged, and the tangential position outlet is used for discharging pollution thoroughly.
• Unique three-point hold down ensures a high-quality seal, avoiding side leakage of liquid.
• The filter housing can be available with swing arm, eyebolt or quick-open design, making operation convenient and easy.

• Max. operating pressure: 1.0MPa
• Max. operating temperature:150℃

• Housing: 304, 316L stainless steel
• Eyebolt: 304 stainless steel
• Adjustable leg assembly: 304 stainless steel
• O-ring: EPDM, PTFE, Viton, Silicone

• Connection of housing: Flange
• Inlet/outlet: Flange, Tri-clamp, Thread
• N3 Pressure gauge (option): 1/2’’ Female thread
• N4Vent valve (option): 1/2’’ Male thread
• N5 Drain value (option): 1/2’’ Male thread

• Finish type: mechanical/ electrolytic polishing, sand blasting
• Polishing precision: 0.6μm inner wall Ra<0.6μm, 0.8μm exterior wall Ra≤0.8μm, basket 0.6μm
