Titanium Bar Filter
Request a Quote

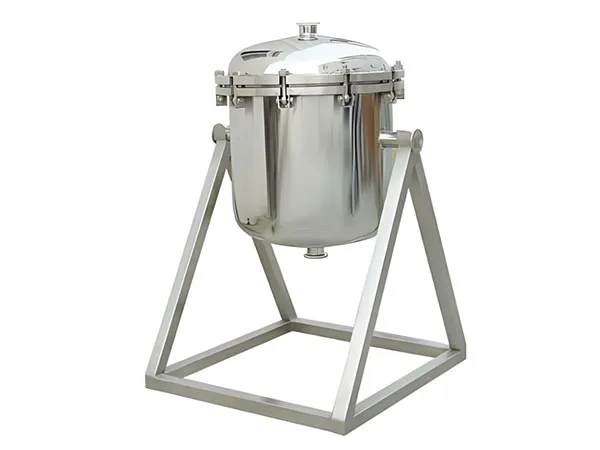

Titanium Bar Filter

The 316L microporous titanium bar filter features filter elements made from sintered titanium alloy powder. With a filtration precision ranging from 0.5 to 50μm, it operates at temperatures up to 230°C and pressures up to 0.4 MPa. This filter is known for its strong corrosion resistance, stable filter layers without shedding, and minimal adsorption of key components. It is primarily used for decarbonization of pharmaceutical liquids and gas filtration and can replace traditional sand filters used in large infusion production lines.

Materials and Features
  • Made from high-quality stainless steel (304, 316L), the filter boasts a compact size, lightweight, ease of use, large filtration area, low clogging rate, fast
  • filtration speed, pollution-free operation, and excellent thermal and chemical stability
  • Filter Cartridges are available in configurations of 1, 3, 5, 7, 9, 11, 13, and 15 cores
  • Cartridge are offered in different length, such as 10 inches, 20 inches, 30 inches, and 40 inches
  • Filter cartridge matterials include PTFE, polysulfone, nylon, polypropylene, and acetate fiber
  • Pore size options include 0.1 μm, 0.22 μm, 0.45 μm, 1 μm, 3 μm, 5 μm, 10 μm. Filters come in hydrophobic (suitable for gases) and hydrophilic (suitable for liquids) versions, allowing for tailored applications
Technical Parameters
Model 101 106 107 108 109 112
Filtering area (m²) 0.11 0.06 0.06 0.03 0.04 0.05
Flow rate (kg/h) Wine filtering 750 400 400 125 150 200
Water filtering 1500 800 800 250 300 400
