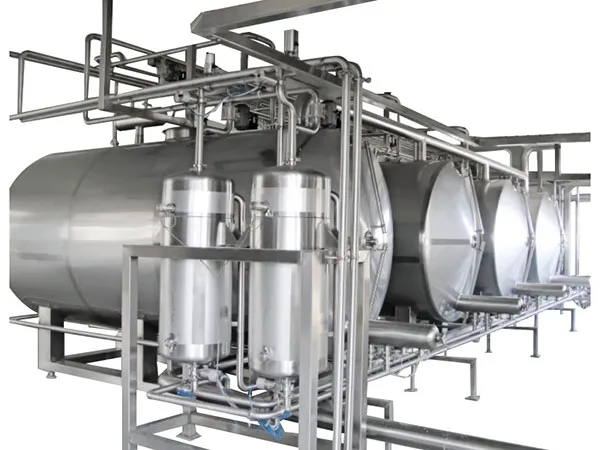

Four Tank Split Full Automatic CIP Cleaning System

Four Tank Split Full Automatic CIP Cleaning System

The fully automatic CIP cleaning system refers to the cleaning of equipment such as tanks, pipelines, pumps, valves, etc. and the entire production line in a closed loop without the need for manual disassembly.

Technicals
Our four tank split full automatic CIP cleaning system is designed with PLC control system and a colored touch-screen for operation and display of whole process flow and each controlling parameter. The temperature of the cleaning liquid is adjustable. In addition, the PH valve, the cleaning time, cleaning sequence, and also the backflow PH valve are all pre-settable. To ensure safety, the CIP cleaning system is also designed with malfunction alarm device.

Request a Quote
The operating principle of the system

1. Auto-flow control for the cleaning solution
2. Automatically regulate the temperature of the cleaning liquid
3. Auto-compensate for the inside tank liquid level
4. Automatically-compensation for the acid and alkali concentration.
5. Auto transfer from one cleaning liquid to another
6. System auto alarm-device

Main structure of CIP cleaning system
  • CIP cleaning liquid storage tanks (include acid tank, alkali tank, hot water tank, clear water tank);
  • Two medium storage single layer tanks for concentrated acid and alkali;
  • CIP forward and return pumps;
  • Two diaphragm pumps for acid/alkali concentrate;
  • Heat exchanger (Plate or Tubular type);
  • One electrical appliance box;
  • One set of controlling pipe and valve component;
  • One set of auto-performance components and parts and the electrical appliance material;

According to the customer's requirements, we can make the double circuit, three circuit, four circuit cleaning system and so on. Meanwhile, we can make multi circuit operating at the same time.

The heating way of our CIP cleaning system comes into plate type, coil tube type, and tubular type.

Technical parameters
Tank size 1000L-10000L
CIP tank type Alkali tank, acid tank, hot water, fresh water tank, reclaim tank
Cleaning cycle Single circuit, double circuits, three circuits, four circuits
Heating method Coil pipes inside, plate heat exchanger, tube heat exchanger
Control types and functions Fully automatic control 1. Flow rate auto control; 2. Auto temperature control; 3. Automatically compensate the CIP liquid level; 4. Automatically compensate the liquid concentration; 5. Cleaning liquid transfer; 6. Auto alarm
Semi-automatic control 1.Temperature auto control 2.With control panel, manual control the others
Manual control Manually operate during the cleaning process

Wenzhou Longqiang Machinery Tech. Co., Ltd. is a professional full automatic CIP cleaning system manufacturer based in China. In addition, we also manufacture a wide range of food process equipment, such as dairy production lines, tea beverage production lines, soft drink production lines, sterilizers, retorts, fermentation tanks, and different kinds of evaporator, and more. Our products are of high quality and fair price, and they have been exported to Canada, Russia, Kazakhstan, Japan, Malaysia, Vietnam, the United Arab Emirates and many other countries.
If you are in need of CIP cleaning system, or other products, please feel free to contact us. We look forward to providing superior quality products and excellent to you.
