Automatic Static Retort

Automatic static retort is designed for sterilizing food products packaged in plastic containers (PP bottles, HDPE bottles), flexible pouches (aluminum foil bags, vacuum bags, oven bags), and rigid containers (tinplate cans, aluminum cans, glass bottles).

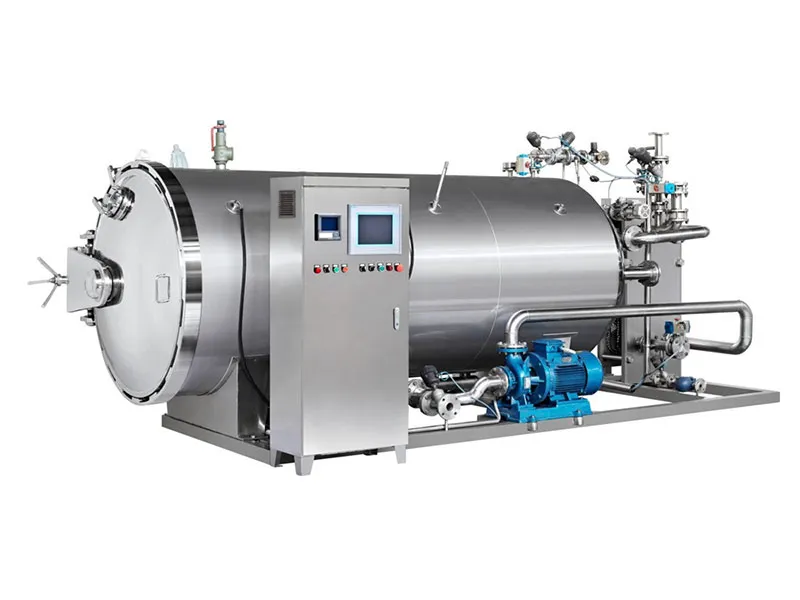

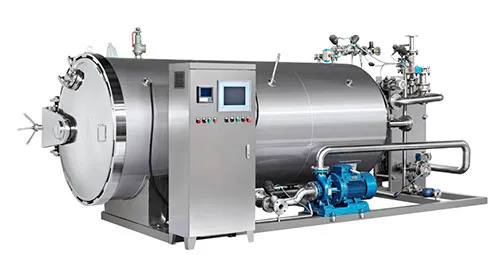

Automatic Static Retort (Water Spray)
Automatic Static Retort (Water Spray)

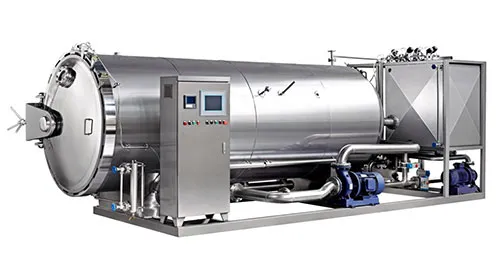

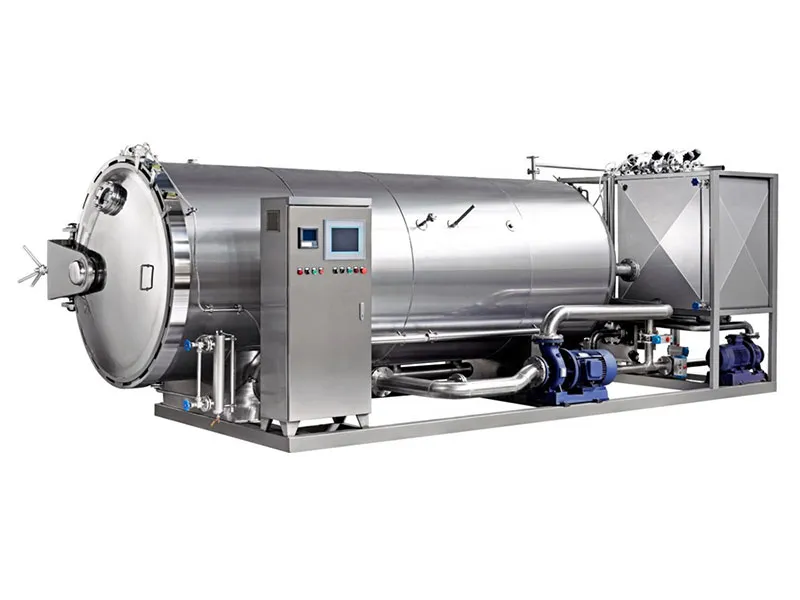

Automatic spray retort (side spray+ top spray)
Automatic spray retort (side spray+ top spray)
Request a Quote
Features
  • Automatic loading and unloading system
  • Cooling water doesn't contact with process water, which avoids secondary food contamination
  • Predetermined sterilization temperature can be quickly achieved to perform high temperature sterilization in a short time.
  • Due to precise pressure control, the pressure can be adjusted in the entire sterilization process to adapt to the change of internal pressure of product packaging, ensuring minimal deformation.
  • Head (end cap) processed with cold forming undergoes vibration aging, avoiding deformation caused by stress during operation.
  • The surface of stainless steel retort body is processed by sand grinding, enabling it to have high hardness and good corrosion resistance to chlorine added in the cooling water.
  • The advanced and reliable control system by SIEMENS ensures that customers can promptly access supply chains worldwide, minimizing downtime caused by malfunctions.
  • The entire sterilization process is controlled by the PLC control system; even thermal distribution is ensured throughout the retort, with a tolerance of ±0.5℃; multi-stage heating available; optionally equipped with F value measurement function; 250 sterilization formulas can be stored.
  • Top or side door available
Technical parameters
Items Units Ф700# Ф1200# Ф1300# Ф1500# Ф1600#
Length mm 800 3000 3750 4000 3750 4000 4000 5000 6000 6000
Overall length mm 1300 5500 6250 6500 6250 6500 6500 7500 8500 8500
Total width mm 900 1600 1600 1600 1800 1800 2000 2000 2000 2200
Total height mm 1000 1700 1700 1700 1800 1800 2000 2000 2000 2100
Effective volume m3 0.1 2 2.52 2.69 3.03 3.24 4.16 5.2 6.2 7.26
Food basket 2 3 4 4 4 4 4 5 6 6
Steam consumption Kg/batch 80 200 250 270 270 300 360 430 530 630
Equipment power Kw 3.7 15 16.5 16.5 18.5 18.5 24 26 27.5 27.5
Design temperature 145℃
Test pressure 0.44MPa
Design pressure 0.35MPa
