Retort Sterilizers Process for Food & Beverage System

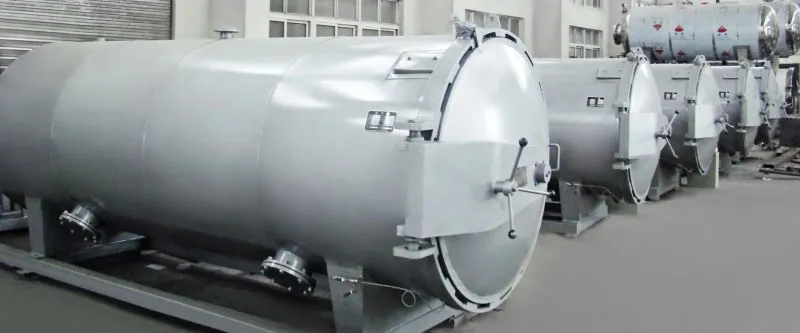

Static retort, also called autoclave, is applicable to all kinds of heat resistant packaging, such as plastic containers: PP, HDPE bottles; flexible packing: aluminum foil bags, transparent bags, vacuum bag, cooking bag; rigid containers: tinplate cans, aluminum cans, and glass container.
| Items | Units | Ф700# | Ф1200# | Ф1300# | Ф1500# | Ф1600# | |||||
| Length | mm | 800 | 3000 | 3750 | 4000 | 3750 | 4000 | 4000 | 5000 | 6000 | 6000 |
| Overall length | mm | 1300 | 5500 | 6250 | 6500 | 6250 | 6500 | 6500 | 7500 | 8500 | 8500 |
| Total width | mm | 900 | 1600 | 1600 | 1600 | 1800 | 1800 | 2000 | 2000 | 2000 | 2200 |
| Total height | mm | 1000 | 1700 | 1700 | 1700 | 1800 | 1800 | 2000 | 2000 | 2000 | 2100 |
| Effective volume | m3 | 0.1 | 2 | 2.52 | 2.69 | 3.03 | 3.24 | 4.16 | 5.2 | 6.2 | 7.26 |
| Food basket | 2 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 6 | 6 | |
| Design temperature | 145℃ | ||||||||||
| Test pressure | 0.44MPa | ||||||||||
| Design pressure | 0.35MPa | ||||||||||
