Sanitary Stainless Steel Vessels for Food and Beverage Processing System

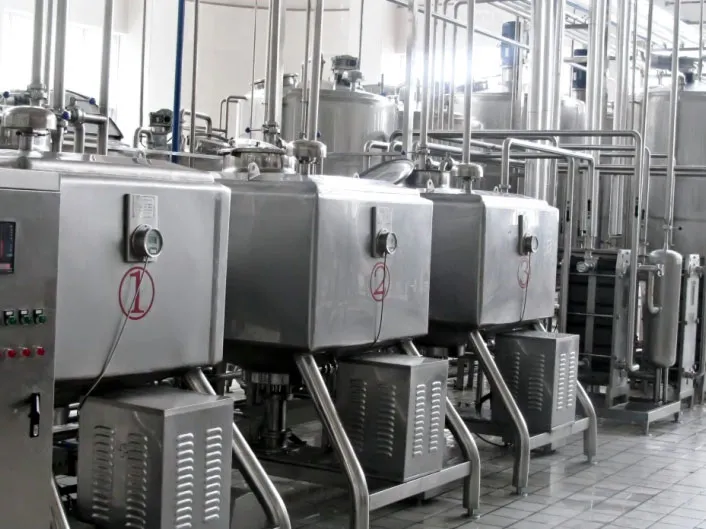

This square high shear emulsifying tank is to blend the materials efficiently under mixing, pressing and shearing force caused by the high-speed rotation of the impeller in the bottom, which is especially applicable for the mixture of sugar, starch, milk powder, egg powder products with the emulsifying agent, stabilizing agent and thickening agent which are usually used in the mixing flow of formula milk powder, acidophilus milk, various drinks, ice cream, egg roll and waffles. We have adopted R-arc transition regarding the structural design to guarantee there is no dead corner to influence the sanitation; Furthermore, the technical innovation has been carried out on the sealing structure for the mixing at the bottom to prolong the service life of the mechanic seal and bearing to the largest extent, and it has also saved the service cost for the clients.
1. Food and beverage industry: dairy products, ice cream, chocolate, soy milk, fruit juice, jam, etc.
2. Chemical industry: lubricating oil, grease, heavy oil emulsification, diesel emulsification, disinfectant, pesticide, thickener, flavor, silicon material, sealant, etc.
3. Cosmetics industry: detergent, conditioner, shampoo, lotion, perfume, etc.
4. Pharmaceutical industry: injections, pharmaceutical lotions, pharmaceutical creams, health products, pharmaceutical pulps, etc
5. Pulp and paper industry: pulp, adhesive, resin emulsification, etc.
| Volume (L) | Length (Inner tank) (mm) | Width (Inner tank) (mm) | Height (Inner tank) (mm) | General height (mm) | Insulation layer (mm) | Motor powder (kw) | Speed (r/min) |
| 400 | 900 | 900 | 550 | 1700 | 50 | 7.5 | 1460 |
| 600 | 1000 | 1000 | 650 | 1850 | 50 | 11 | 1460 |
| 800 | 1050 | 1050 | 750 | 1950 | 50 | 15 | 1460 |
| 1000 | 1150 | 1150 | 750 | 2000 | 50 | 15 | 1460 |
| 1500 | 1250 | 1250 | 1000 | 2300 | 50 | 18.5 | 1460 |
Note: we can design our square high shear emulsifying tank according to customer's requirement.
We also have round high shear emulsifying tank.
Wenzhou Longqiang Machinery Tech. Co., Ltd. is an experienced stainless steel emulsifying tank manufacturer based in China. We can provide a wide range of high quality food sterilization equipment, biopharmaceutical production lines, sanitary stainless steel vessels, concentration equipment and filtering equipment, etc. We are also devoted to offering professional sales service to our valued customers. Thus, you can feel secure in choosing our dairy process equipment.
For purchase, please feel free to contact us. We look forward to working with you.
