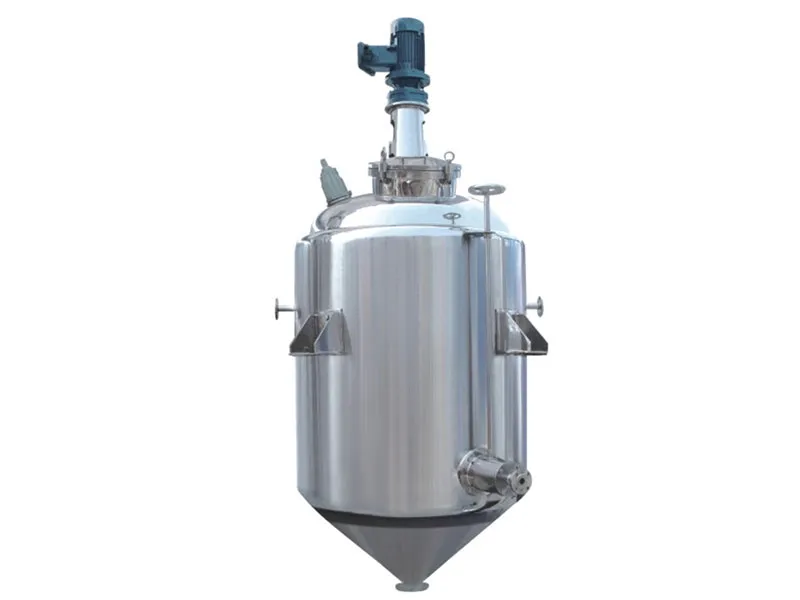

Alcohol deposition tank is applicable to the alcohol deposition of oral liquid of Chinese herb, pharmacy, food, light industry and chemical engineering. It is the main equipment for alcohol deposition.
The alcohol deposition tank is made of stainless steel. It is equipped with automatic high-pressure water spray cleaning system and explosion-proof motor. It is designed with a jacket for cooling.
Drive device adopt mechanical seal.
The production process is in accordance with GMP quality standard.
Model Item | JC-300 | JC-500 | JC-1000 | JC-1500 | JC-2000 | JC-3000 | JC-6000 | |
Volume (m3 ) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 6.0 | |
Heat exchanging area (㎡) | 1.8 | 3.0 | 4.5 | 6.5 | 7.5 | 8.5 | 13 | |
Temperature | 20℃~ -15 ℃ | |||||||
Jacket pressure | 0.25Mpa | |||||||
Pressure in tank | 0.01Mpa | |||||||
Heat transfer coefficient | 150-200Kj/㎡h℃ | |||||||
Agitator power (KW) | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3.0 | 5.0 | |
Rotary speed (r/min) | 250 | 250 | 160 | 125 | 125 | 125 | 125 | |
Weight | 512Kg | 1250Kg | 1480 Kg | 1750 Kg | 1880 Kg | 2200 Kg | 4000Kg | |
Overall dimension (mm) | D | 600 | 800 | 1000 | 1200 | 1300 | 1400 | 1600 |
D2 | 850 | 1050 | 1300 | 1550 | 1650 | 1750 | 2000 | |
H | 900 | 900 | 1200 | 1200 | 1300 | 1400 | 2700 |
Note: we can design this bio-pharmacy equipment according to customer's requirement.
