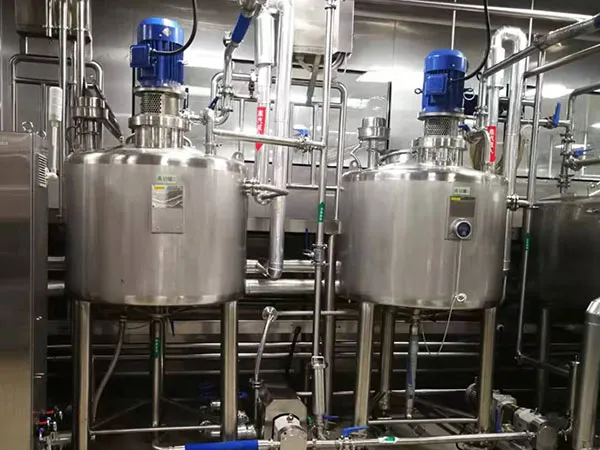

High-Shear Emulsification Tank
The high-shear emulsification tank is a high-performance industrial homogenizer designed for dispersing, emulsifying, and breaking down materials. It uses a high-speed rotating rotor and stator to create shear forces that ensure uniform mixing under various operating conditions.
Applications
This tank is widely used for production and formulation in a wide range of industries such as cosmetics, pharmaceuticals, coatings, chemicals, pigments, resins, food, and research.
Models & volumes
- Standard models: Available in various sizes including 500L, 1000L, up to 20,000L, with both standard and custom designs
- Custom models: Tailored to specific customer requirements, including customized volumes
Specifications
- Stirring (Emulsification) speed: Available at 1450 r/min or 2800 r/min (fixed speed) or with variable speed drive options
- Motor power: Selected based on stirring capacity and material properties
Structure
- Jacketed vessel: Options include full jackets, half-coil jackets, or honeycomb jackets to meet different heating or cooling needs
- Insulated vessel: Insulated with rock wool or polyurethane foam to ensure excellent thermal insulation
Configurations
- Heating/Cooling: Can be equipped with heating and cooling systems to accommodate various processes and production needs
- Level gauges: Includes glass tube level gauges and pressure level sensors for easy monitoring
- Support legs: Adjustable three-point or round tube legs for stable operation
- Additional features: Includes quick-opening sanitary manholes, sight glasses, thermometers (LCD or dial), sampling ports, breathers, CIP cleaning systems, and inlet/outlet ports for media
Features
- Efficient emulsification: Achieves high-efficiency and uniform emulsification through advanced shear mixing technology
- Stable and reliable: High-quality stainless steel construction and precise manufacturing ensure equipment stability and reliability
- User-friendly: Compact design and easy operation make the tank convenient to use and operate
Customization
We offer customization services for the high-shear emulsification tank, including tailored designs for volume, materials, heating/cooling methods, and stirring configurations based on specific customer needs.
