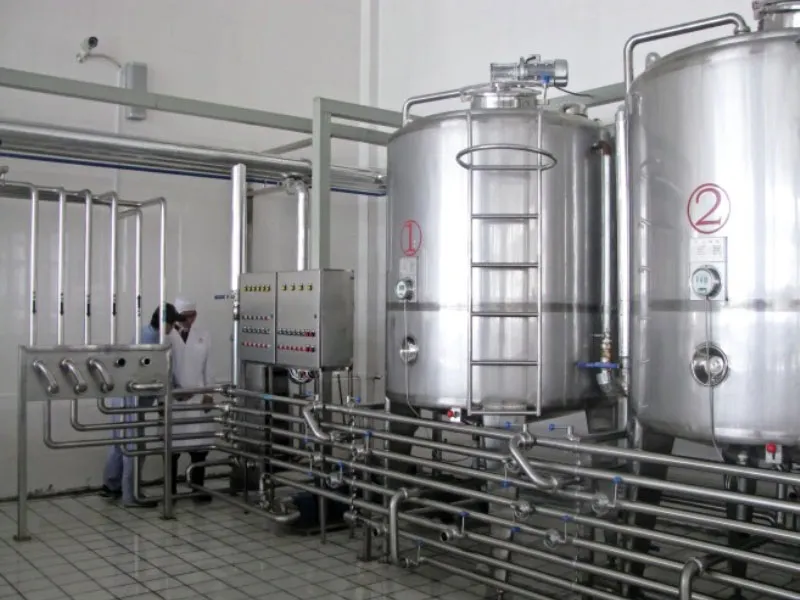

Three Layer Cooling Heating Tank

Three Layer Cooling Heating Tank

Applications
  • The three layer cooling heating tank can be used as liquid storage tanks, mixing tanks, temporary storage tanks, etc.
  • It is suitable for food, dairy, fruit juice and beverage, pharmaceutical, chemical, and biological engineering industries, etc.
Request a Quote
Structure features

1. Our three layer cooling heating tank is composed of an internal tank which is wrapped by external package, and heat preservation materials are filled into the gap between the internal tank and external package.
2. Sanitary stainless steel is adopted for making this cooling heating tank.
3. It is designed with humanization structure and simple operation.
4. The transition area of the stainless steel tank is designed into arc shape which ensures no dead corner.

Configurations of three layer cooling heating tank

1. Quick open manhole
2. Various models of CIP Cleaning machines.
3. This cooling heating tank is designed with a fly and insect resistant sanitary breathing cover, thus ensuring high hygienic standard.
4. Adjustable triangle legs
5. Dismountable material feeding tube assembly
6. Thermometer (available upon customers requirement)
7. Ladder (available upon customers requirement)
8. Side blender
9. Jacket(Dimple jacket or coil jacket are available according to customer's requirements.)
10. Liquid level meter and level controller
11. Anti-vortex plate

Technical parameters of three layer cooling heating tank
Volume (L) Dimension (D*h) (mm*mm) Height (mm) Diameter of inlet and outlet (mm) Insulation layer (mm) Motor power (kw) Mixing speed ( r/min)
1000 1060*1220 2550 51 60 1.1 960
1500 1160*1500 2850 51 60 1.1 960
2000 1340*1500 2900 51 60 1.1 960
3000 1410*2000 3400 51 60 1.5 960
4000 1620*2000 3450 51 60 1.5 960
5000 1810*2000 3500 51 60 2.2 960
6000 1980*2000 3550 51 60 2.2 960
7000 1930*2440 4000 51 60 3 960
8000 2060*2440 4000 51 60 3 960
9000 2180*2440 4050 51 60 4 960
10000 2300*2440 4050 51 60 4 960
12000 2270*3000 4600 51 60 5.5 960
15000 2530*3000 4700 51 60 5.5 960
20000 2640*3660 5400 51 60 5.5 960

Note: Our cooling heating tank can be made according to customer's requirement.

Wenzhou Longqiang Machinery Tech. Co., Ltd. is a major stainless steel cooling heating tank manufacturer based in China. Through over 20 years' efforts, we are experienced in manufacturing food process equipment, and our company is ISO9001:2008 approved. Our products are exported to Nepal, Panama, Chile, Algeria and the United Arab Emirates, and many other countries.
For more detailed information on our dairy process equipment, please contact us. We look forward to providing good service to you.
