Sanitary Stainless Steel Vessels for Food and Beverage Processing System
  • Home
  • Products
  • Sanitary Stainless Steel Vessel
  • Large Outdoor Storage Tank

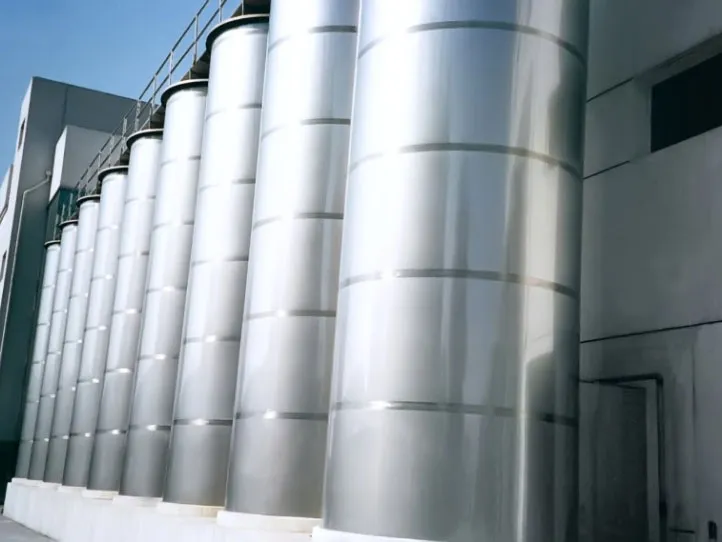

Large Outdoor Storage Tank

Large Outdoor Storage Tank

Applications

Our large outdoor storage tank is designed for large and medium dairy processing enterprises, including industries like fruit juice and pharmacy, etc.

Request a Quote
Structure features
  • This storage tank is designed with an outer package for the internal tank body, and the heat preservation materials are filled in the gap between the tank and outer package.
  • Miller board jacket cooling design is available for keeping the freshness and quality of dairy products.
  • It is designed with humanization structure and simple operation.
  • The transitional area of the storage tank is designed into arc shape, so there is no any dead corner in the tank.
Configurations of large outdoor storage tank
  • T-type cleanser
  • Breathing cover
  • Sampling valve
  • Manhole
  • Jacket (according to customer's requirements)
  • Side blender
  • Pressure sensor (according to customer's requirements)
  • Thermometer (according to customer's requirements)
  • Ladder and platform
  • Temperature transmitter
Technical parameters of large outdoor storage tank
Volume (L) Dimension (D*h) (mm*mm) Height (mm) Insulation layer (mm) Diameter of inlet and outlet (mm) Motor power (kw) Mixing speed ( r/min)
20000 2260*5600 7000 100 51 5.5 960
30000 2800*5600 7500 100 51 5.5 960
50000 2800*5600 7500 100 51 5.5 960
60000 3000*9500 11100 100 51 5.5 960
100000 3400*11000 12600 100 51 5.5*2 960
120000 3400*13500 15100 100 51 5.5*2 960

Note: we can design our stainless steel vessels according to customer's requirement.

Wenzhou Longqiang Machinery Tech. Co., Ltd. is a major stainless steel outdoor storage tank manufacturer based in China. We have been specialized in manufacturing stainless steel vessels for almost 30 years. Our products are all made of sanitary stainless steel. In addition to storage vessels, we also supply complete engineering, such as milk production line, juice beverage production lines and pharmaceutical engineering. Our products are sold all over the world, such as South Asia, Africa, South America, Canada etc.
Our location in the coast of East China Sea provides us with easy access to convenient transportation by sea, land and airs, which can greatly reduce our raw material acquisition cost and the shipping fees for customers. We are certain you will be satisfied with your purchase. For purchase, please feel free to contact us. We look forward to working with you.
