Reactor
Request a Quote

Reactor

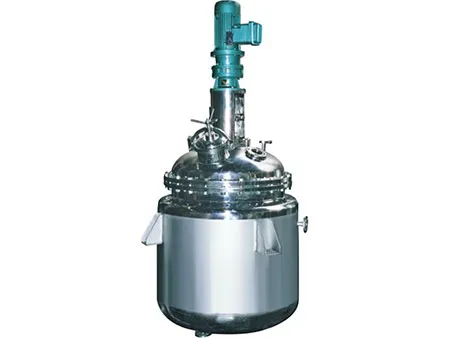

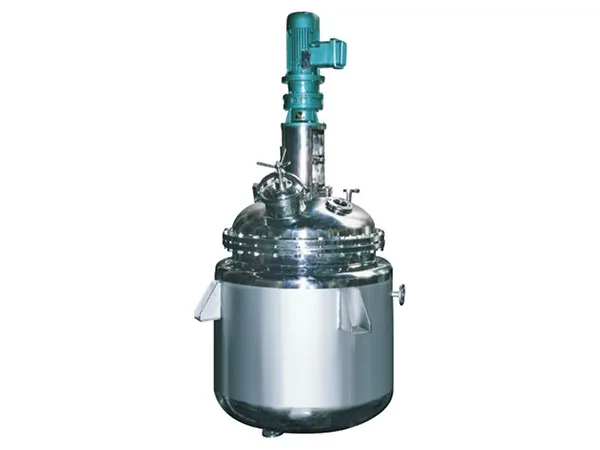

Reactor is made of stainless steel and is widely used in pharmaceutical, chemical, biological, food and other industries.

The agitator of our reactor is available in anchor type, frame type, paddle type, and turbine type.

The drive device is equipped with pinwheel reducer or step-less reducer.

Seals are all mechanical seals.
With jacket inside for cooling and heating.
Our reactor is designed with three different types of heating methods, including steam, electricity and thermal oil heating.
The reactor could be acid-proof, alkali-proof, high temperature proof, anti-abrasive and corrosion-proof. All the requirements can be satisfied according to the customer's requirements.

Technical parameters of Longqiang reactor
Model Item TF100 TF200 TF500 TF1000 TF1500 TF2000 TF2500 TF3000 TF4000 TF5000
Volume (L) 100 200 500 1000 1500 2000 2500 3000 4000 5000
Diameter (mm) 500 600 800 1000 1200 1200 1400 1400 1500 1600
Pressure in tank (Mpa) 0.5
Jacket pressure (Mpa) 0.25~0.6
Motor power (KW) 1.1 1.5 2.2 4.0 4.0 4.0 5.5 5.5 5.5 7.5
Mixing speed (rpm) 36 63 85 130 180

Note: We can design our reactor according to customer's requirement.
