Applications

Single layer storage tank can be used as liquid storage tank, mixing tank, temporary tank and water storage tank etc.
It is suitable to be used in food, dairy, juice and beverage, pharmaceutical, chemical, and biological engineering, etc.

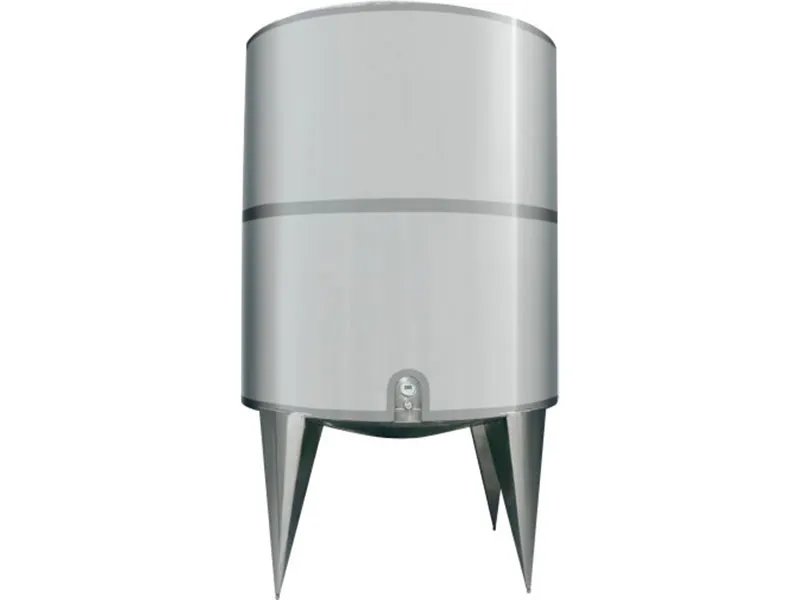

Structure features

Single-layer stainless steel structure.
Sanitary stainless steel is adopted as the raw material for producing our storage tank.
It is designed with humanization structure and simple operation.
The transition area of the tank is designed into arc shape which ensures no dead corner.

Request a Quote

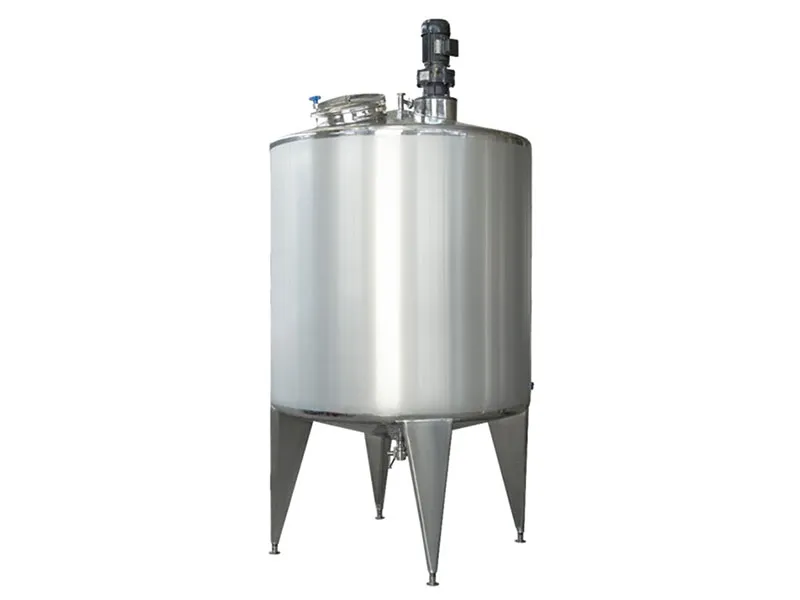

Configurations of single layer storage tank

1. Quick open manhole
2. Various models of CIP cleansing machine
3. Fly and insect resistant sanitary breathing cover
4. Adjustable triangle legs
5. Dismountable materials feeding tube assembly
6. Thermometer (According to customer's requirements)
7. Ladder (According to customer's requirements)
8. Paddle blender
9. Liquid level meter and level controller (according to customer's requirements)
10. Anti-vortex plate

Technical parameters of single layer storage tank

Volume (L)	Dimension (Dh) (mmmm)	Height (mm)	Diameter of inlet and outlet (mm)	Motor power (kw)	Mixing speed ( r/min)
500	840*1000	2750	38	0.55	35 43 60 Option (Continuously variable gear or Two-speed gear)
600	920*1000	2850	38	0.55
700	990*1000	2850	38	0.55
800	950*1220	3000	38	0.55
900	1010*1220	3000	38	0.55
1000	1060*1220	3150	51	0.75
1500	1160*1500	3350	51	0.75
2000	1340*1500	3410	51	1.1
3000	1410*2000	4000	51	1.5
4000	1620*2000	4250	51	1.5
5000	1810*2000	4300	51	2.2
6000	1980*2000	4550	51	2.2
7000	1930*2440	5000	51	2.2
8000	2060*2440	5000	51	3
9000	2180*2440	5050	51	3
10000	2300*2440	5050	51	3
12000	2270*3000	5600	51	4
15000	2530*3000	5700	51	4
20000	2640*3660	6400	51	5.5

Note: we can design custom our single layer storage tank according to customer's requirement

Wenzhou Longqiang Machinery Tech. Co., Ltd. is a major stainless steel storage tank manufacturer based in China. We also provide milk production lines, ice cream production lines, soft drink production lines, filtering equipment, pharmacy equipments and more. Relying on reliable quality and competitive prices, our dairy process equipment has been exported to Nepal, Panama, Chile, Algeria and the United Arab Emirates, and many other countries.
We welcome you to visit our factory, and we are certain you will be satisfied with your purchased.
