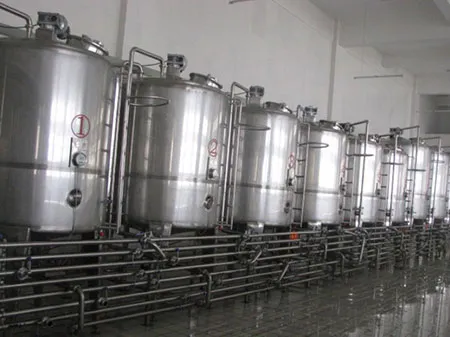

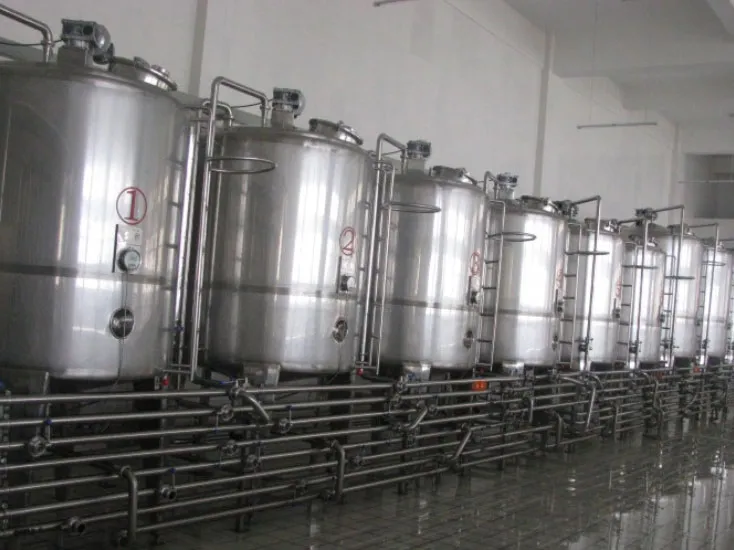

Vertical Three Layer Cooling Heating Mixing Tank

The vertical three layer cooling heating mixing tank features an inner and outer layered structure with a vertical stirring mechanism. The tanks are cylindrical, open-top stainless steel vessels designed to withstand acids and pressures while providing effective insulation and cooling. They combine practicality with visual aesthetic, making them essential for heating, cooling, insulating, or storing slurries.

Applications

Our vertical three layer cooling heating mixing tank is an ideal replacement of conventional blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and aging tank, etc.
This stainless steel tank is commonly used in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological, to name a few.

Structure features

Our vertical three layer cooling heating mixing tank is composed of an internal tank which is wrapped by external package, and heat preservation materials are filled into the gap between the internal tank and external package.
Sanitary stainless steel is adopted for making this vertical mixing tank.
3. It is designed with humanization structure and simple operation.
The transition area of the mixing tank is designed into arc shape which ensures no dead corner.

Configurations

Designed with quick open manhole, this stainless steel mixing tank is convenient for maintenance.
Various models of CIP Cleaning machines
Fly and insect resistant sanitary breathing cover
Adjustable triangle legs
Dismountable materials feeding tube assembly.
Thermometer (According to customer's requirements.)
Ladder (According to customer's requirements)
Vertical blender
Jacket(Dimple jacket or coil jacket are available according to customer's requirements.)
Liquid level meter and level controller
Anti-vortex plate

Technical parameters of vertical three layer cooling heating mixing tank

Volume (L)	Dimension (Dh) (mmmm)	Height (mm)	Insulation layer (mm)	Diameter of inlet and outlet (mm)	Motor power (kw)	Mixing speed (r/min)
500	840*1000	2750	60	38	0.55	35 43 60 Option (Continuously variable gear or Two-speed gear)
600	920*1000	2850	60	38	0.55
700	990*1000	2850	60	38	0.55
80	950*1220	3000	60	38	0.55
900	1010*1220	3000	60	38	0.55
1000	1060*1220	3150	60	51	0.75
1500	1160*1500	3350	60	51	0.75
2000	1340*1500	3410	60	51	1.1
3000	1410*2000	4000	60	51	1.5
4000	1620*2000	4250	60	51	1.5
5000	1810*2000	4300	60	51	2.2
6000	1980*2000	4550	60	51	2.2
7000	1930*2440	5000	60	51	2.2
8000	2060*2440	5000	60	51	3
9000	2180*2440	5050	60	51	3
10000	2300*2440	5050	60	51	3
12000	2270*3000	5600	60	51	4
15000	2530*3000	5700	60	51	4
20000	2640*3660	6400	60	51	5.5

Note: Our cooling heating mixing tank can be made according to customer's requirement.

Wenzhou Longqiang Machinery Tech. Co., Ltd. is a professional stainless steel mixing tank manufacturer based in China. Since our establishment in 1984, we have been manufacturing high quality food process equipment, such as dairy machines, sterilizers, beverage production lines, ice cream production lines, filters, and concentration equipment, etc. Through joint efforts, we are approved by ISO9001:2008, and our products are exported to Canada, Russia, Kazakhstan, Japan, Malaysia and many other countries. You can feel comfortable in choosing our products.
For orders and inquiries, please feel free contact us. We look forward to working with you.
