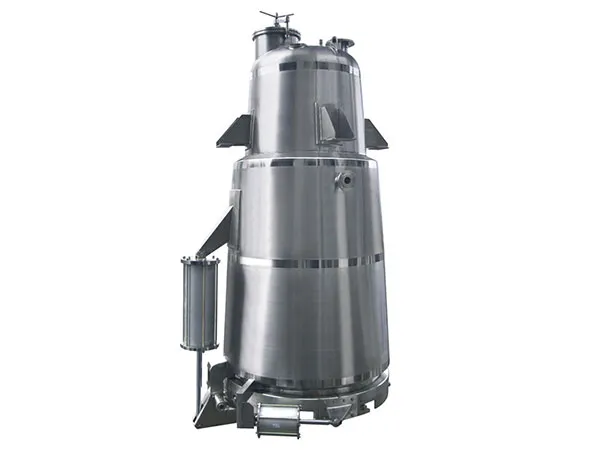

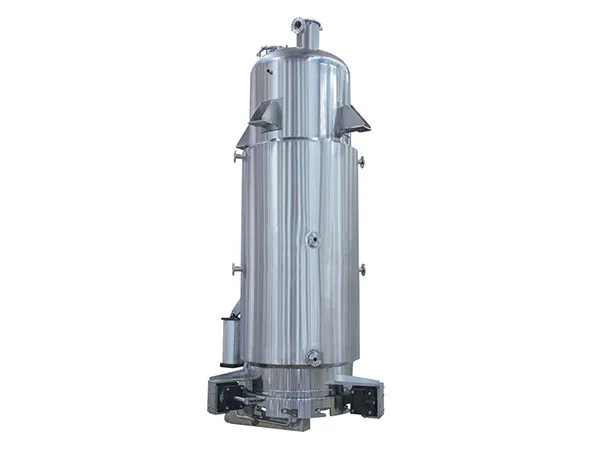

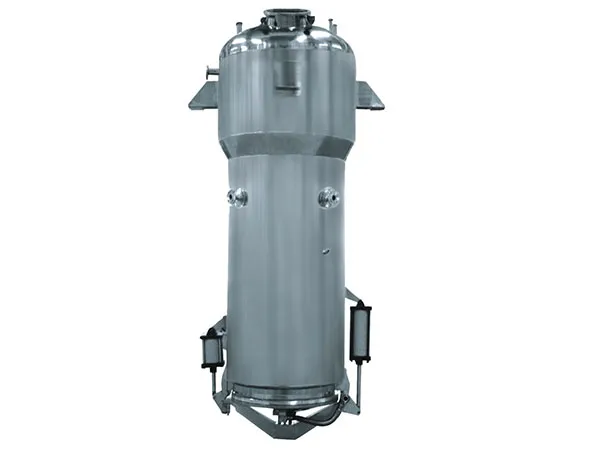

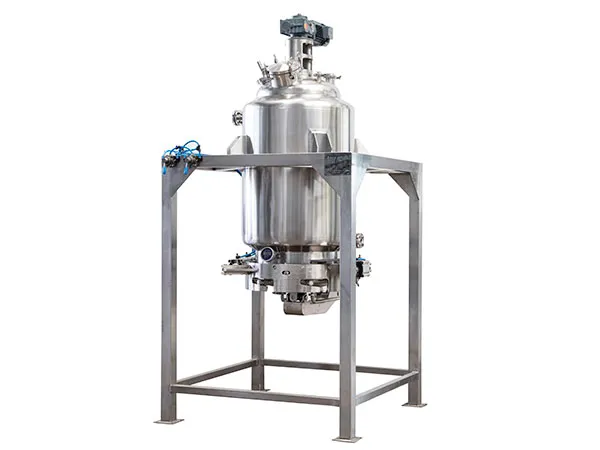

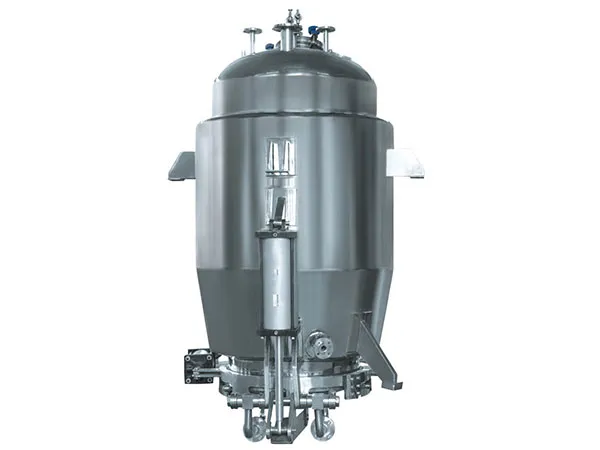

Extraction Tank

Extraction Tank

An extraction tank is designed for such industries as China traditional drug, food stuff and chemistry . for the technologies such as normal pressure, mini pressure, water decocting, warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic solvent with the features of high efficiency and convenient operation. The CIP cleaning system inside the extraction tank meets with GMP standard.

Inquiry
TQ-D/TQ-Z series
Model and specification TQ-D-0.5 TQ-D-1 TQ-D-2 TQ-D-3 TQ-D-6 TQ-D-8 TQ-Z-1 TQ-Z-2 TQ-Z-3 TQ-Z-6 TQ-Z-8 TQ-Z-10
Volume(L) 750 1200 2300 3400 6400 8500 1200 2300 3200 6300 8500 11000
Design pressure in the tank (MPa) 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09
Design pressure in the jacket (MPa) 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Compressed air pressure (MPa) 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7
Material inlet diameter(mm) 150 200 200 300 350 400 400 400 400 500 500 500
Heating area (m2) 2.0 3.2 5.3 6.8 8.5 10.5 3.0 4.7 6.0 7.5 9.5 12
Condensing area (m2) 5 6 8 10 12 16 6 8 10 12 16 20
Cooling area(m2) 0.5 1 1 1 2 2 1 1 1 2 2 3
Filtrating (m2)             3 3 3 5 5 6
Residual discharge door diameter(mm) 800 1000 1200 1500 1700 1900 800 800 800 1000 1000 1000
Steam consumption (Kg/h) 145 195 258 300 552 728 245 325 345 645 720 850
TQ-M/TQ-T series
Model and specification TQ-M-1 TQ-M-2 TQ-M-3 TQ-M-6 TQ-M-8 TQ-M-10 TQ-T-1 TQ-T-2 TQ-T-3 TQ-T-6 TQ-T-8 TQ-T-10
Volume(L) 1200 2300 3200 6300 8500 11000 1200 2300 3200 6300 8500 11000
Design pressure in the tank (MPa) 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09
Design pressure in the jacket (MPa) 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Compressed air pressure (MPa) 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7 0.6~0.7
Material inlet diameter (mm) 400 400 400 500 500 500 400 400 400 500 500 500
Heating area (m2) 3.0 4.7 6.0 7.5 9.5 12 3.0 4.7 6.0 7.5 9.5 12
Condensing area (m2) 6 8 10 12 12 20 6 8 10 12 16 20
Cooling area (m2) 1 1 1 2 2 3 1 1 1 2 2 3
Filtrating (m2) 3 3 3 5 5 6 3 3 3 5 5 6
Residual discharge door diameter (mm) 800 800 800 1000 1000 1000 800 1000 1000 1000 1000 1000
Steam consumption (Kg/h) 245 325 345 645 720 850 245 325 345 645 720 850

Wenzhou Longqiang Machinery Tech. CO., LTD is a professional extractor manufacturer and supplier based in China. Our more than 20 years experience in manufacturing food and bio-pharmaceutical process equipment ensures us being able to provide you high quality, economically priced machines. You can find our products throughout Nepal, Japan, Panama, Chile, Algeria and the United Arab Emirates, and many other countries.
For orders and inquiries, please feel free to contact us. We look forward to working with you.
