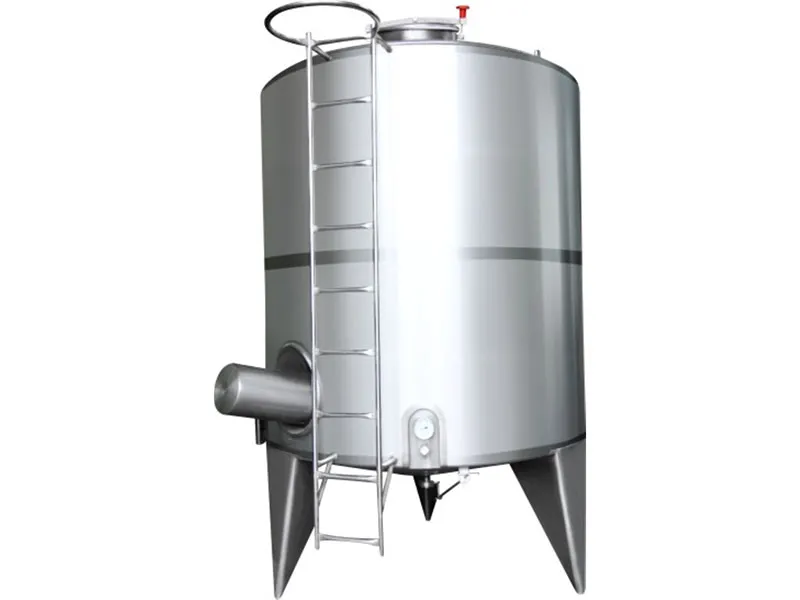

Double Layer Storage Tank

Double Layer Storage Tank

Applications

1. Double layer storage tank can be used as liquid storage tank, liquid composing tank, temporary storage tank, and liquid blending tank etc.
2. It is suitable to be used in food, dairy, juice and beverage, pharmaceutical, chemical, and biological engineering, etc.

Request a Quote
Structure features of Double Layer Storage Tank

1. The storage tank is composed of an internal tank which is wrapped by external package, and heat preservation materials are filled into the gap between the internal tank and external package.
2. Sanitary stainless steel is adopted for making this double layer storage tank.
3. It is designed with humanization structure and simple operation.
4. The transition area of the tank is designed into arc shape which ensures no dead corner.

Configurations of double layer stainless steel storage tank

1. Quick open Manhole
2. Various models of CIP cleaning machines
3. Fly and insect resistant sanitary breathing cover
4. Adjustable triangle legs
5. Dismountable materials feeding tube assembly.
6. Thermometer (According to customers requirements)
7. Ladder (According to customers requirements)
8. Advanced side blender
9. Liquid level meter and level controller (According to customers requirements)
10. Anti-vortex plate

Technical parameters of double layer stainless steel storage tank
Volume (L) Dimension (D*h) (mm*mm) Height (mm) Diameter of inlet and outlet (mm) Insulation layer (mm) Motor power (kw) Mixing speed ( r/min)
1000 1060*1220 2550 51 60 0.75 960
1500 1160*1500 2850 51 60 1.1 960
2000 1340*1500 2900 51 60 1.1 960
3000 1410*2000 3400 51 60 1.5 960
4000 1620*2000 3450 51 60 1.5 960
5000 1810*2000 3500 51 60 2.2 960
6000 1980*2000 3550 51 60 2.2 960
7000 1930*2440 4000 51 60 3 960
8000 2060*2440 4000 51 60 3 960
9000 2180*2440 4050 51 60 3 960
10000 2300*2440 4050 51 60 3 960
12000 2270*3000 4600 51 60 4 960
15000 2530*3000 4700 51 60 4 960
20000 2640*3660 5400 51 60 5.5 960

Note: We can design our double layer stainless steel storage tank according to customers' requirement.

As an ISO9001:2008 approved double layer storage tank manufacturer based in China, Wenzhou Longqiang Machinery Tech. CO., LTD also manufacture dairy production lines, tea beverage production lines, mineral water production lines, sterilizers, filtering equipment, fermentation tanks, and concentration equipment, and so on. They are all in high quality and reasonable price, and have attracted many clients at home and abroad.
Additionally, our location in the coast of East China Sea provides us with access to convenient transportation by sea, land and air, which can reduce our purchasing cost, as well the shipping fees for customers.
For orders and inquiries, please feel free to contact us. We are very appreciate to providing good service to you.
