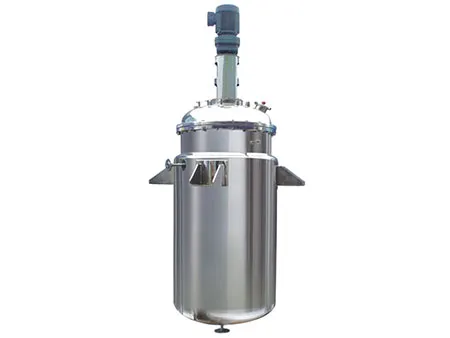

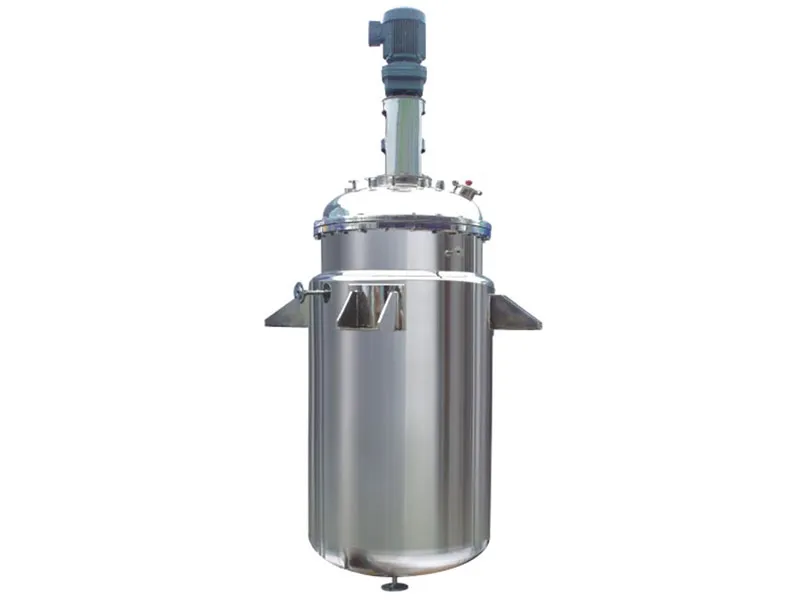

Fermentation tanks feature jacket with insulated wrap for heating, cooling and insulation, which are widely used in the pharmaceutical and fine chemical industries. The tank body, upper and lower head are all processed by metal spinning. The inner wall of the fermenter is mirror polished, with surface roughness of Ra≤0.4μm. Fully enclosed tank design ensures no contamination for material mixing and fermentation. This fermenting equipment is designed with CIP spray ball, manhole, sight glass, light, etc.
Model | 100L | 200L | 500L | 1000L | 2000L | 5000L | 10000L | 20000L |
Diameter(mm) | 400 | 500 | 700 | 900 | 1200 | 1500 | 1800 | 2300 |
Height(mm) | 2000 | 2300 | 2650 | 2900 | 3800 | 4480 | 5250 | 6550 |
Pressure in tank(MPa) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
Pressure in jacket(MPa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Impeller number | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 4 |
Agitation speed(r/min) | 80 | |||||||
Motor power(Kw) | 0.55 | 0.75 | 1.1 | 1.5 | 3 | 5.5 | 7.5 | 7.5 |
Cooling method | Jacket | Tubular |
