Sanitary Stainless Steel Vessels for Food and Beverage Processing System

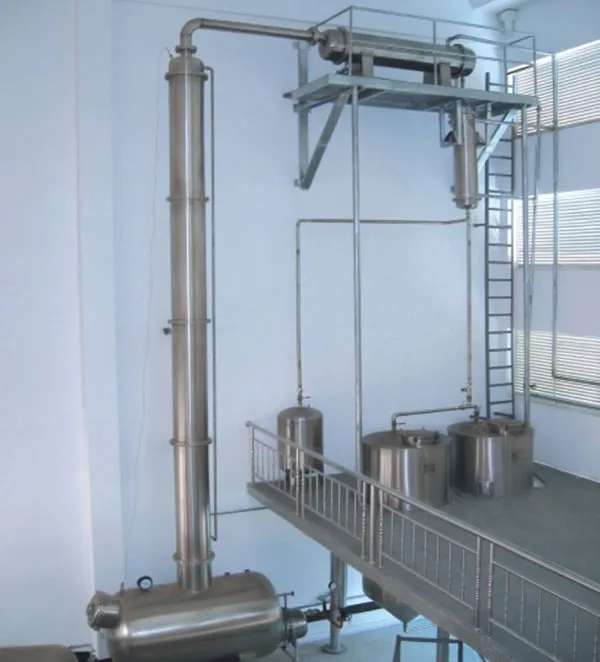

Alcohol recovery tower mainly consists of tower pot, tower body, condenser, cooler, buffer tank and high level storage tank. It is widely used for alcohol recovery in pharmacy, food, light industry, and chemical industries, etc. The parts contacted with materials are all made of 0Cr19Ni9 stainless steel, so the alcohol recovery tower has good corrosion-resistant capability and can save energy,
Protect environment, reduce production cost and increase efficiency. The device can distill thin alcohol of 30-50 degree to 93-95 degree. The residual liquid discharged is low alcohol content, which is in accordance with environment protection requirement.
| Model and specification | |||||||
| Tower body diameter(mm) | 200 | 300 | 400 | 500 | 600 | 800 | |
| Tower body height(mm) | 6000 | 7000 | 7500 | 8000 | 10000 | 12000 | |
| Tower volume(L) | 640 | 1220 | 1450 | 2300 | 2500 | 3200 | |
| Recycling capacity(kg/h) | 90～100 | 150～160 | 200～220 | 300～350 | 420～440 | 600～620 | |
| Heat exchanging area(m2) | 3 | 5 | 10 | 10 | 16 | 26 | |
| Condensing area(m2) | 5 | 9 | 20 | 28 | 36 | 42 | |
| Cooling area(m2) | 1 | 1.5 | 2 | 4 | 8 | 10 | |
| Packing type | SS Corrugated packing | ||||||
| Recovery concentration(%) | ≧95 | ≧95 | ≧95 | ≧95 | ≧95 | ≧95 | |
| Dimension(mm) | L | 2.3 | 2.6 | 2.5 | 3 | 3.5 | 4.2 |
| W | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.8 | |
| H | 9 | 11 | 11 | 12 | 14 | 17 | |
Note: we can design custom product according to customer's requirement.
Wenzhou Longqiang Machinery Tech. Co., Ltd. is a major alcohol recovery tower manufacturer based in China. We are approved by ISO9001:2008. Our dairy process equipment, beverage production lines, jacketed kettles, coil interval evaporators and filters, and more, has high quality and reasonable price. Thus, our products are exported to Nepal, Panama, Chile, Algeria and the United Arab Emirates, and many other countries.
For orders and inquiries, please feel free to contact us. We are looking forward to working with you.
