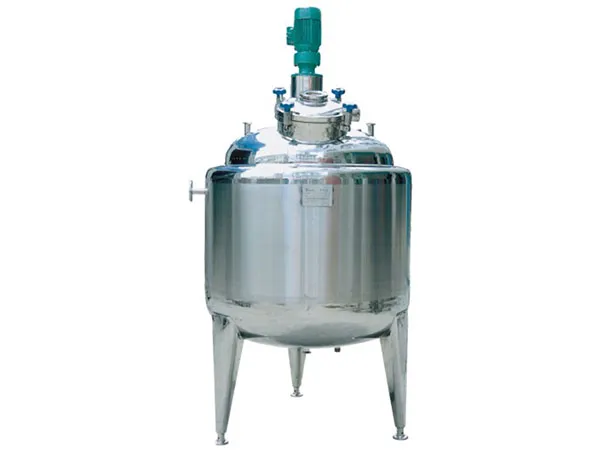

1. This concentrated collocation tank or diluter collocation tank has many functions, such as heating, cooling, heat preservation and mixing preparation. The container is designed and processed according to "Technical conditions of the steel made pressure container".
2. Our collocation tank is available in different specifications, ranging from 0.05m3-50m3, subject to the customer's request.
3. With jacket inside. Features: Wide heating area and small welding area, etc.
4. The modes of jacket consist of standard jacket, internal coil and dimple jacket.
5. The interface adopts internationally general use standard ISO standard quick-mounted chuck type. The material is imported 316L or 304. The internal surface of the tank is mirror finish to Ra≤0.28цm. The external surface is matt finished.
6. The level meter for selections are glass tube level meter, static pressure sensor type level meter and supersonic wave level meter.
7. Structure: Top and bottom elliptical head.
8. Heat preservation: Polyurethane or pearl wool.
9. The concentrated collocation tank, diluter collocation tank is equipped with respirator, CIP nozzle, viewing mirror, flanged quick-open manhole etc.
You can feel totally secure in choosing our products.
Model | Volume (L) | Dimensions(mm) | ||||||||
D | D1 | H | H1 | H2 | H3 | DN | Power | |||
PG03-100 | 100 | 500 | 700 | 1700 | 850 | 450 | 235 | 32 | 0.37KW | |
PG03-150 | 150 | 600 | 800 | 1750 | 900 | 450 | 235 | 32 | 0.37KW | |
PG03-250 | 250 | 800 | 1000 | 1800 | 960 | 450 | 235 | 32 | 0.55KW/0.75KW | |
PG03-300 | 300 | 800 | 1000 | 2000 | 1010 | 460 | 235 | 32 | 0.55KW/0.75KW | |
PG03-500 | 500 | 900 | 1100 | 2050 | 1240 | 640 | 270 | 40 | 0.55KW/0.75KW | |
PG03-600 | 600 | 900 | 1100 | 2315 | 1430 | 830 | 270 | 40 | 0.55KW/0.75KW | |
PG03-1000 | 1000 | 1100 | 1300 | 2505 | 1580 | 880 | 270 | 40 | 0.75KW/1.1KW | |
PG03-1200 | 1200 | 1100 | 1300 | 2655 | 1800 | 1100 | 270 | 40 | 0.75KW/1.1KW | |
PG03-1500 | 1500 | 1200 | 1400 | 3275 | 1900 | 1150 | 270 | 40 | 0.75KW/1.1KW | |
PG03-2000 | 2000 | 1400 | 1600 | 3275 | 2050 | 1220 | 280 | 40 | 1.5KW/2.2 KW | |
PG03-2500 | 2500 | 1500 | 1700 | 3135 | 2050 | 1150 | 280 | 40 | 1.5KW/2.2 | |
PG03-3000 | 3000 | 1600 | 1800 | 3255 | 2170 | 1220 | 280 | 40 | 1.5KW/2.2 | |
PG03-4000 | 4000 | 1800 | 2000 | 3385 | 2300 | 1250 | 280 | 40 | 1.5KW/2.2 | |
PG03-5000 | 5000 | 1900 | 2100 | 3675 | 2550 | 1450 | 320 | 50 | 2.2KW | |
PG03-6000 | 6000 | 2100 | 2300 | 3725 | 2600 | 1400 | 320 | 50 | 3KW | |
PG03-7000 | 7000 | 2200 | 2400 | 3815 | 2690 | 1450 | 320 | 50 | 3KW |
Wenzhou Longqiang Machinery Tech. CO., LTD is a China-based, professional concentrated collocation tank and diluter collocation tank manufacturer, in operation since 1984. We devote ourselves to manufacturing a wide range of dairy process equipment, like dairy production lines, fruit juice production lines, pure water production lines, sterilizers, filters and concentration equipment, and so on. Relying on reliable quality and low price, our products are exported to Canada, Russia, Kazakhstan, Japan, Malaysia and many other countries.
For orders and inquiries, please contact us at Wenzhou Longqiang Machinery Tech. CO., LTD. We look forward to working with you.
