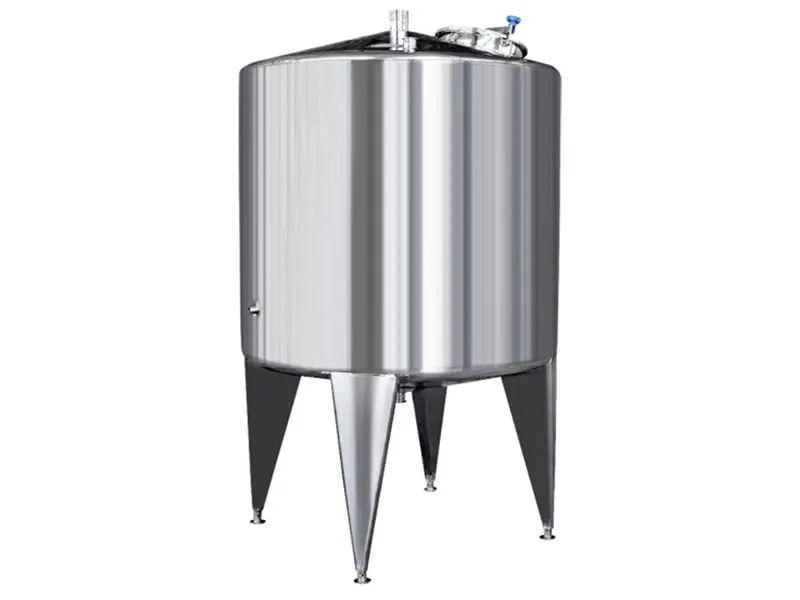

Double Layer Vertical Mixing Storage Tank

Double Layer Vertical Mixing Storage Tank
Inquiry
Applications

1. This double layer vertical mixing storage tank is an ideal replacement of liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank, etc.
2. It is suitable to be used in food, dairy, juice and beverage, pharmaceutical, chemical, and biological engineering industries, etc.

Structure features

1. Our double layer vertical mixing storage tank is composed of an internal tank which is wrapped by external package, and heat preservation materials are filled into the gap between the internal tank and external package.
2. Sanitary stainless steel is adopted for making this double layer vertical storage tank.
3. It is designed with humanization structure and simple operation.
4. The transition area of the mixing storage tank is designed into arc shape which ensures no dead corner.

Configurations of double layer vertical mixing storage tank

1. Quick open manhole
2. Various models of CIP cleaning machines.
3. Fly and insect resistant sanitary breathing cover
4. Adjustable triangle legs
5. Dismountable materials feeding tube assembly.
6. Thermometer and ladder are both optional choices
7. Vertical blender (paddle type or frame type are available according to customers' requirement)
8. Anti-vortex plate

Technical parameters of double layer vertical mixing storage tank
Volume (L) Dimension (D*h) (mm*mm) Height (mm) Insulation layer (mm) Diameter of inlet and outlet (mm) Motor power (kw) Mixing speed ( r/min)
500 840*1000 2750 60 38 0.55 Common rotation speed 35 43 60 stepless speed reducer or dual-speed reducer are also available
600 920*1000 2850 60 38 0.55
700 990*1000 2850 60 38 0.55
80 950*1220 3000 60 38 0.55
900 1010*1220 3000 60 38 0.55
1000 1060*1220 3150 60 51 0.75
1500 1160*1500 3350 60 51 0.75
2000 1340*1500 3410 60 51 1.1
3000 1410*2000 4000 60 51 1.5
4000 1620*2000 4250 60 51 1.5
5000 1810*2000 4300 60 51 2.2
6000 1980*2000 4550 60 51 2.2
7000 1930*2440 5000 60 51 2.2
8000 2060*2440 5000 60 51 3
9000 2180*2440 5050 60 51 3
10000 2300*2440 5050 60 51 3
12000 2270*3000 5600 60 51 4
15000 2530*3000 5700 60 51 4
20000 2640*3660 6400 60 51 5.5

Note: we can design our double layer vertical mixing storage tank according to customer's requirement.

Wenzhou Longqiang Machinery Tech. CO., LTD is a professional stainless steel storage tank manufacturer based in China. Our tanks are all produced in accordance with sanitary standard. Except stainless steel tanks, we also provide whole production engineering, such as dairy production line, soy milk production lines, tomato paste production lines, water production lines, pharmacy engineering, concentration equipment, and more. Our products are exported to Japan, Malaysia, Myanmar, Vietnam, Nepal and many other countries. It sales amount is rising year by year.
If you are interest in our products, please feel free to contact us.
