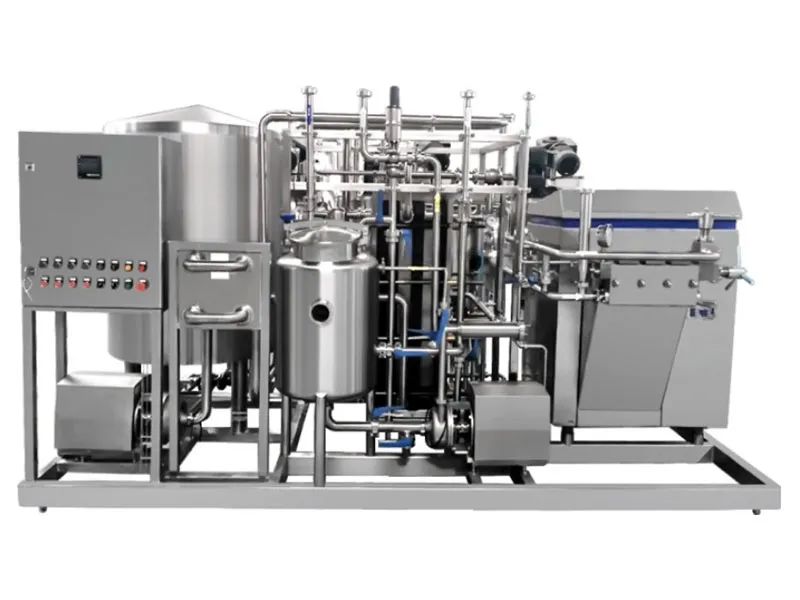

Pasteurizer for Yogurt

This pasteurizer system is built to operate at heating temperature 90~95℃. Keeping at that temperature for around 5 minutes results in the best combination of denatured whey protein and water. This process preserves yogurt flavor and consistent texture, making it a good choice for dairy factory.

The pasteurizer system uses PGB type holding tank to keep temperature for 5 minutes. The holding tank is made of SUS304-2B stainless steel, and features coil tubes with silicate insulation inside.

Inquiry
Pasteurizer for Yogurt
Technological parameters (FYI)

This pasteurizer is specially designed for yogurt production. The technical parameters are as following: inlet at 5℃→ 65℃ (homogenizer) → pasteurize at 90~95℃ (maintain 300S) → outlet at 43℃.

Technical parameters
Model Process capacity Heat exchanging area(m2) Power(kw) Steam consumption(kg/h) External dimension Total weight of machine(kg)
BR16-SN-05 0.5 t/h 5 5.2 80 1200*1200*1800 780
BR16-SN-1 1 t/h 8 5.2 110 1500*1500*2000 950
BR16-SN-1.5 1.5t/h 11 6 130 2000*1600*2000 980
BR26-SN-2 2 t/h 14 6 160 2200*2000*2500 1020
BR26-SN-3 3 t/h 21 8 190 2400*2000*2500 1120
BR26-SN-5 5 t/h 30 11 320 2600*2000*2500 1260
BR26-SN-10 10 t/h 54 11 620 2800*2000*2500 1680
