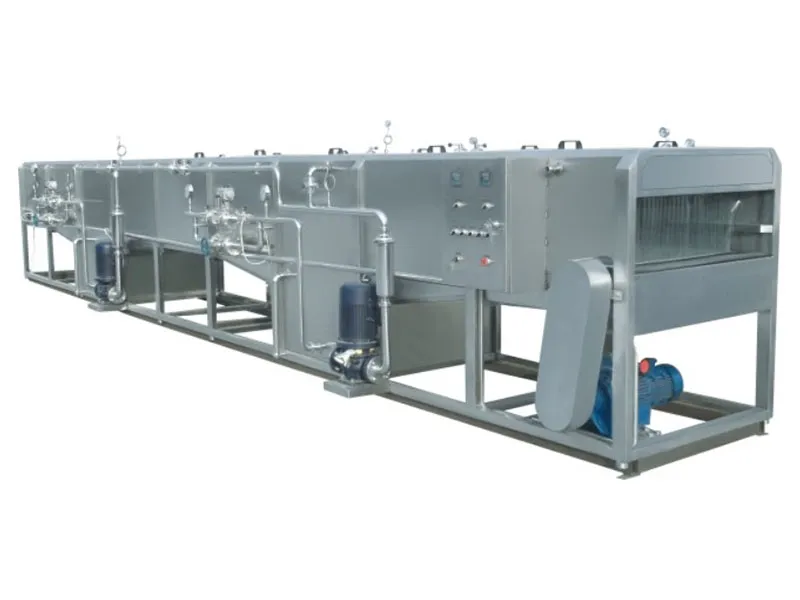

Tunnel Pasteurizer

Tunnel Pasteurizer

Continuous spraying type tunnel pasteurizer is designed with 4-stage pasteurization process: circulating warm water for preheating, circulating hot water for pasteurization, circulating warm water for pre-cooling, and cooling water for spraying. The pasteurization equipment features automatically controlled pasteurization temperature and steplessly adjustable pasteurization time. It can be designed according to the pasteurization conditions and output provided by the clients.

Request a Quote
Applications

The tunnel pasteurizer is suitable for the pasteurization and cooling of food, beverage and condiments packed in bottles, jars, cans, pouches or trays.

Technical parameters
Model PLS-1000 PLS-2000 PLS-3000 PLS-5000
Max. Pasteurization temperature 100℃
Pasteurization conveyor width 1500mm
Conveyor speed 110-553mm/min(stepless speed)
Steam pressure 0.4MPa
Length of pasteurization section(mm) 9000mm 16000mm 22000mm 320000mm
Length of pre-cooling section(mm) 1200mm 16000mm 1800mm 2200mm
Length of cooling section(mm) 3000mm 5000mm 8000mm 10000mm
Hot water recycle capacity(m3) 21m3 25 m3 35 m3 50 m3
Power(kW) 9.6kw 10.6kw 13.6kw 16.5kw
Size(mm) 9880mm 17880mm 23800mm 34880mm
2250mm
1735mm
Discover Related Products
    1. Plate Pasteurizer
    2. Plate Pasteurizer
      Read More
    1. Tubular UHT Pasteurizer
    2. Tubular UHT Pasteurizer
      Read More
    1. Coil Instant Ultra High Temperature Sterilizer
    2. Coil Instant Ultra High Temperature Sterilizer
      Read More
    1. Pasteurizer for Yogurt
    2. Pasteurizer for Yogurt
      Read More
    1. Tunnel Pasteurizer
    2. Tunnel Pasteurizer
      Read More

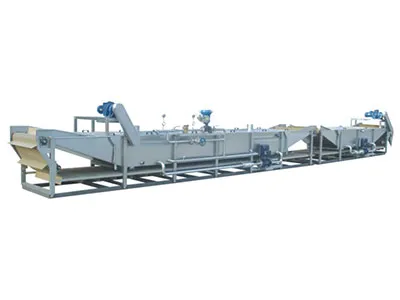

    1. Continuous Bath Pasteurizer
