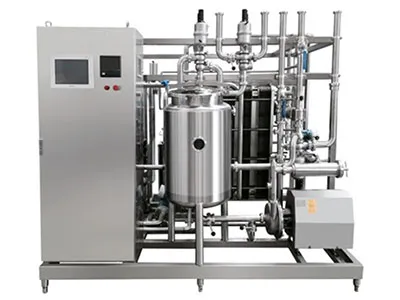

Plate Pasteurizer

This plate pasteurizer can be connected with separator, homogenizer, flash evaporator and degasser etc. It is widely used for sterilization of fresh milk, milk beverage, juice, tea, alcohol, ice cream etc. and it also pre-sterilizes materials when producing pasteurized milk (Long life milk).

Inquiry
Plate Pasteurizer
Control type

Full-automatic control (PLC with touch screen) and Semi automatic PID control are both available for our plate pasteurizer.

Process parameters (Degree Celsius): 5→65 (homogenizing) →85-65 (15S) →5.

Standard attachments

A Plate heat exchanger
B Material-balance bucket
C Hot water-balance drum
D Hot water pump
E Product pump
F Steam-water mixer
G Electricity cabinet
H Stainless steel pipes and valves etc.
I PLC and color touch screen.
Production capacity: 500L-20T/H

Technical parameters of Plate Pasteurizer
Model Capacity (T/H) Heat exchanging area Power Steam Consumption External dimensions Weight
BR16-3-0.5 0.5 5 5.2 52 1200×1200×1500 790kg
BR16-3-1 1 8 5.2 60 1500×1500×1800 880kg
BR16-3-2 2t/h 13 6 104 1800×2000×1800 980kg
BR26-3-3 3t/h 20 6 156 2000×2000×2200 1080kg
BR26-3-4-5 4-5t/h 30-45 8 260 2250×2000×2200 1250kg
BR26-3-6-8 6-8t/h 35-50 8 400 2250×2000×2200 1250kg
BR26-3-10 10t/h 60- 11 520 2800×2000×2200 1650kg
BR35-3-15 15t/h 75 15 780 3000×2200×2200 2150kg
BR35-3-20 20t/h 80 18 945 3300×2200×2200 2350kg

Wenzhou Longqiang Machinery Tech. CO., LTD is a professional plate pasteurizer manufacturer and supplier based in China. We also provide dairy production lines, beverage production lines, biopharmaceutical production lines, water production lines, retorts, stainless steel vessels, and concentration equipment, and more. Our equipment is mainly used for processing liquid food products. Relying on reliable quality and reasonable price, they are exported to Kazakhstan, Japan, Malaysia, Myanmar and Vietnam, and many other countries.

If you are interested in our dairy process equipment, please contact us. We look forward to working with you.
