Plate UHT Sterilizer

Plate UHT sterilizer, a kind of food sterilization equipment, is widely used in milk production lines, juice production lines, beverage production lines and soy milk production lines, for the sterilization of milk, juice, beverage and soy milk, etc. It consists of material pump, balance barrel, hot water system, temperature controller, recording device and electrical control system, etc. Our equipment is characterized of high heat recovery, compact structure, and stable temperature control.

Inquiry

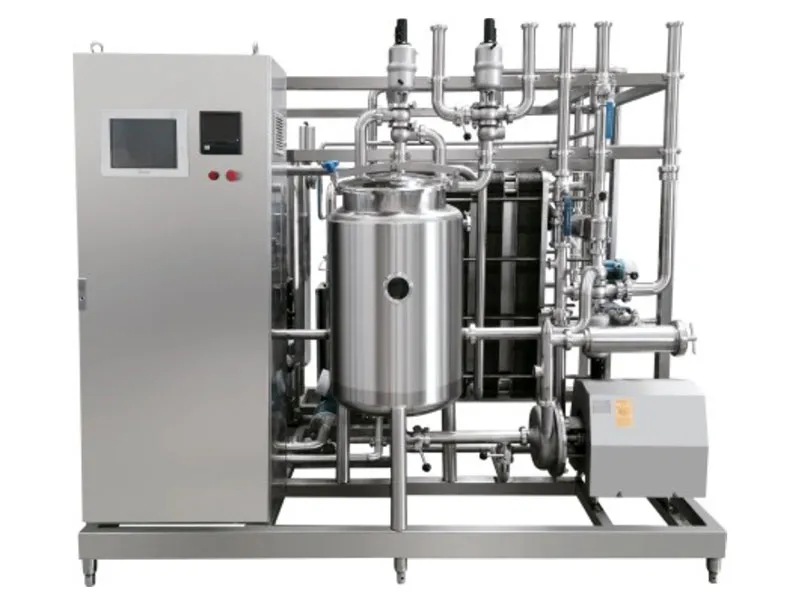

Plate UHT Sterilizer
Specifications of Plate UHT Sterilizer

1. Capacity: 0.5~20t/h
2. Sterilizing temperature: 137℃
3. Control mode: semi-automatic, automatic (PLC controller, touch screen displaying)
4. Technicals: 5→65℃ (homogenizing) →137℃ (3-5S) →20℃→25℃

This plate UHT sterilizer adopts ultra high heat temperature to sterilize the liquid dairy products, tea drink and juice for the aseptic filling production. The sterilize temperature keeps at 137 ℃for 3-5s to remain the nature nutrition and flavor of the milk and juice.

This UHT sterilizer has the following characteristics: High heat reuse efficiency, tight structure design fine looking and temperature control well etc. Discharge temperature of this sterilization equipment can be self controlled so it is available for the hot filling procedure and meanwhile for aseptic cold filling.

Technical parameters of Plate UHT Sterilizer
Model Capa city (L/H) Material inlet temper ature Holing time Sterili zing tempera ture Mate rial outlet tempe rature Ice water inlet temper ature Steam pres sure Steam Consum ption Compr essed air pressure Consum ption of compr essed air External dimension Weight
LG-UHT-1 1000 5℃ 4-15 105-143℃ 20℃ ≤2℃ 0.5MPa 150Kg/h 0.6MPa 50L/H 3500×2000 ×2500 1700kg
LG-UHT-2 2000 5℃ 4-15 105-143℃ 20℃ ≤2℃ 0.5MPa 210Kg/h 0.6MPa 50L/H 3500×2000 ×2500 2000kg
LG-UHT-3 3000 5℃ 4-15 105-143℃ 20℃ ≤2℃ 0.5MPa 280Kg/h 0.6MPa 60L/H 4500×2500 ×2200 2200kg
LG-UHT-4 4000 5℃ 4-15 105-143℃ 20℃ ≤2℃ 0.5MPa 350Kg/h 0.6MPa 60L/H 5000×2000 ×2200 2500kg
LG-UHT-5 5000 5℃ 4-15 105-143℃ 20℃ ≤2℃ 0.5MPa 420Kg/h 0.6MPa 70L/H 5000×2000 ×2200 2800kg

Note: we can design custom equipment according to customer's request.

Wenzhou Longqiang Machinery Tech. CO., LTD is a professional food machine manufacturer based in China. Except food sterilization machines, we also provide dairy processing line, beverage production line, sanitary stainless steel vessel, concentrator, evaporator, and biopharmaceutical production lines, and so on. Our equipments are all manufactured in accordance with ISO quality management standard, resulting in reliable quality.
If you are interested in our products, please feel free to contact us.
