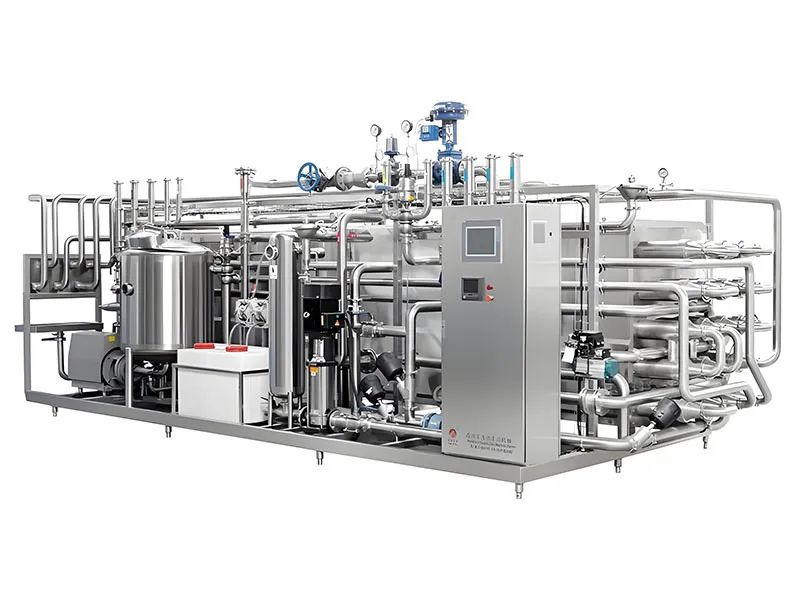

Tubular UHT pasteurizer usually is used together with homogenizer, degasser, separator and other equipment, for the sterilization of milk, beverage, juice, soft drink, soy milk, and other similar liquid materials, and it is suitable for aseptic packaging, like PET packing, plastic bottle and glass bottle, etc.
1. High heat efficiency, 90% of heat can be reused after the product processed.
2. Temperature difference between the product and the heating medium is small, so the heating is gentle. Heat exchanger adopts corrugated tubes, resulting in high efficient heat transmission.
3. This tubular UHT pasteurizer is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable.
4. It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable.
5. The inside of the tubular adopts advanced polish procedures; all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
6. The system is strong safety, the fittings all adopts reliable materials.
7. The UHT pasteurizer is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
8. With self SIP.
Capacity (L/H) | t/h | 1.6 | 2.1 | 3.2 | 4.2 | 5.6 | 6.2 | 8.3 | 11 |
Material inlet temperature | ℃ | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Material outlet temperature | ℃ | 4-30 | 4-30 | 4-30 | 4-30 | 4-30 | 4-30 | 4-30 | 4-30 |
Degassing temperature | ℃ | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Homogenizing temperature | ℃ | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Sterilizing temperature | ℃ | 85-141 | 85-141 | 85-141 | 85-141 | 85-141 | 85-141 | 85-141 | 85-141 |
Holding time | S | 4-75 | 4-75 | 4-75 | 4-75 | 4-75 | 4-75 | 4-75 | 4-75 |
Ice water inlet temperature | ℃ | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Cooling water inlet temperature | ℃ | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Steam pressure | Mpa | ≈0.8 | ≈0.8 | ≈0.8 | ≈0.8 | ≈0.8 | ≈0.8 | ≈0.8 | ≈0.8 |
Steam Consumption | Kg/h | 157 | 208 | 316 | 416 | 514 | 614 | 822 | 1089 |
Pressure of compressed air | Mpa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Consumption of compressed air | NL/min | 60 | 60 | 60 | 80 | 80 | 100 | 100 | 100 |
Power (without homogenizer) | kw | 9.1 | 9.1 | 9.1 | 11 | 11 | 12.5 | 14 | 15.5 |
Weight | kg | 1800 | 1800 | 1800 | 2100 | 2300 | 2400 | 2500 | 2800 |
External dimension(L*W*H) | mm | 4500 ×2500 ×3100 |
4500 ×2500 ×3100 |
4500 ×2500 ×3100 |
7500 ×3100 ×2600 |
7500 ×3100 ×2600 |
Note: we can design custom equipment according to customer's request.
As a professional tubular UHT pasteurizer manufacturer based in China, we also provide dairy machinery, pharmacy equipment, fruit juice production lines, soft drink production lines, stainless steel vessels, filters, and so on. In addition to providing high quality products, we strive to offer excellent customer service.
For more information on our sterilizer equipment, please feel free to contact us. We look forward to working with you.
