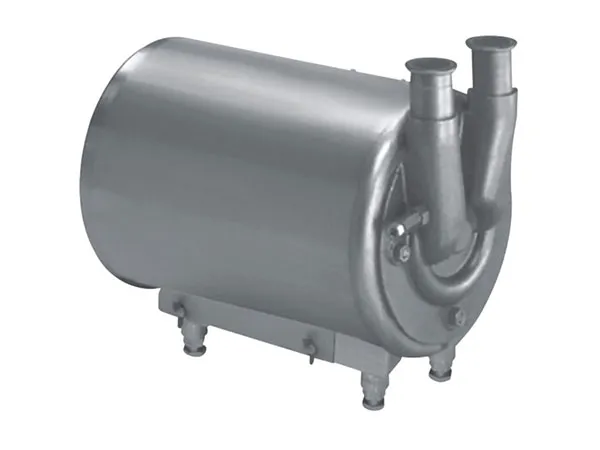

This is a sanitary side channel self priming pump and it is suitable for food processing, pharmaceutical and chemical industries.
It is especially designed for pumping materials containing air or gas, and it can also be used for negative suction with prior priming as well as with filtration equipment.
Longqiang self priming pumps are suitable for pumping wine, oil, syrups, and volatile products such as alcohol, acetone and other solvents. They are also applicable for products at temperatures close to boiling point. However, the main use of this pump is for CIP return.
The impeller is housed between the inlet body and the venture casing and it rotates in conjunction with the pump shaft.
The rotation of the impeller and arrangement of the side channel, create a negative pressure inside the inlet body, which enables the self priming pump to generate suction force. At the same time, the fluid receives energy in the form of kinetic energy and pressure energy, and thus the fluid is impelled to flow through the impeller casing.
The casing of our self priming pump is manufactured with cold-formed plate.
Stainless steel investment casting inlet body and impeller.
Mechanical seal prevents contacting between the springs and the pumped fluid.
Stainless steel support
Parts in contact with pumped media AISI-316/304
Other parts AISI-304
Gaskets (Standard) EPDM (FDA)
Mechanical seal (Standard) C/SiC/EPDM
Inner surface finish Polished
External surface finish Sandblast
|0.75||210V-230V/50HZ 360V-400V/50HZ 420V-460V/60HZ||4||360V-400V/50HZ 630V-690V/50HZ 420V-460V/60HZ|
Optional Components of Self Priming Pump
Mechanical seal in SiC/SiC
Gaskets in FPM (Viton) and PTFE
Inlet & outlet connections: Clamp, Thread, Flange, DIN, SMS, 3A, RJT
