Centrifugal Pump

Operating Principle

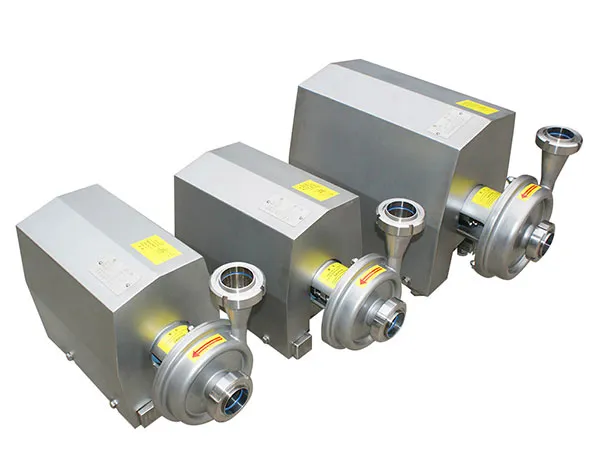

The centrifugal pump is manufactured using stainless steel and with a shrouded motor. Its sanitary and cost-efficient design makes it perfect for the dairies, beverages, food processing, pharmaceutical and fine chemicals industries.

Operating principles

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
This centrifugal pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Request a Quote

Design and features

The casing of the centrifugal pump is manufactured using cold-formed plate. Open impeller and close impeller manufactured with stainless steel investment casing.
Mechanical seal is made according to DIN2946L1K.
Our centrifugal pumps are also designed with adjustable stainless steel legs. Pump designed according to 3A sanitary standards.
IEC B34 motors, IP55, F-class insulation, 50HZ.

Material

Parts in contact with pumped media: AISI-316/304
Other parts: AISI-304
Gaskets (Standard): EPDM(FDA)
Mechanical seal (Standard): C/SiC/EPDM
Inner surface finishing: Ra≤0.8um
External surface finishing: Mirror polished

Options

Mechanical seal in C/St.S and SiC/SiC
Gaskets in FPM(Viton) and PTFE
Connections: Clamp, thread, flange, DIN, SMS, RJT, IDF
Motor 2900,1450,3600rev./min.,50HZ,60HZ

Voltage and power of centrifugal pump

Power(KW)	Voltage
0.55	210V-230V/50HZ 360V-400V/50HZ 420V-460V/60HZ
0.75
1.1
1.5
2.2
3
4	360V-400V/50HZ 630V-690V/50HZ 420V-460V/60HZ
5.5
7.5
11
15
18.5
22
30

Technical specifications, KS series

Open impeller max. flow: 150m³ /h
Open impeller max. head: 70H(M)
Open impeller max. pressure: 7Bar/99PSI
Max. temperature: 120℃, 248℉
Max. rev.: 3600min-1

Technical parameters of centrifugal pump

No.	Name	Model	Motor power	Flow	Lift	Size of connection
1	Centrifugal Pump	BAW-3-16	1.1KW	3T/H	16M	38.1/38.1 40/32
2		BAW-3-30	1.5 KW	3T/H	30M	38.1/38.1 40/40
3		BAW-5-24	1.5 KW	5T/H	24M	50.8/38.1 50/40
4		BAW-5-36	2.2 KW	5T/H	36M	50.8/38.1 50/40
5		BAW-5-50	3 KW	5T/H	50M	50.8/38.1 50/40
6		BAW-8-24	3 KW	8T/H	45M	50.8/38.1 50/40
7		BAW-10-24	2.2 KW	10T/H	24M	50.8/38.1 50/40
8		BAW-10-36	3 KW	10T/H	36M	50.8/38.1 50/40
9		BAW-10-50	4 KW	10T/H	50M	50.8/38.1 50/40
10		BAW-10-60	5.5 KW	10T/H	60M	50.8/38.1 50/40
11		BAW-15-24	3 KW	15T/H	24M	50.8/50.8 50/50
12		BAW-20-24	4 KW	20T/H	24M	50.8/50.8 50/50
13		BAW-20-36	5.5 KW	20T/H	36M	50.8/50.8 50/50
14		BAW-20-55	7.5 KW	20T/H	55M	50.8/50.8 50/50
15		BAW-25-35	5.5 KW	25T/H	35M	50.8/50.8 50/50
16		BAW-30-24	5.5 KW	30T/H	24M	63.5/50.8 65/50
17		BAW-30-36	7.5 KW	30T/H	36M	63.5/50.8 65/50
18		BAW-30-55	11 KW	30T/H	55M	63.5/50.8 65/50
19		BAW-35-35	7.5 KW	35T/H	35M	63.5/50.8 65/50
20		BAW-40-45	11 KW	40T/H	45M	76.2/63.5 80/65
21		BAW-50-60	15 KW	50T/H	60M	76.2/63.5 80/65

Note: we can design custom products according to customer's requirement.
