Pumps for Food and Beverage System

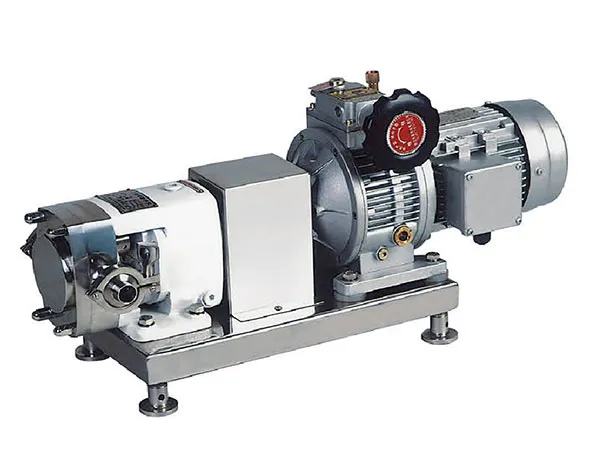

Rotor pump is also named rotary lobe equipment, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors (with 2-4 gears) revolve, the rotor pump produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor pump housing into many smaller parts and revolved in the sequence of a→b→c→d. When it revolves to the position a, only housing I is filled with medium; when it revolves to position b, housing B encloses part of the medium, when it goes to position c, housing A encloses medium, and finally it goes to position d, then housing A,B and II are interlinked and the medium is transported to the outlet. As this process is repeated,medium(material)is transported continuously.
Butterfly rotor pump: with butterfly rotor, it is superior to other rotor pumps when transferring material with high viscosity and larger powder and it can effectively transport extremely stiff material.
Single butterfly curved rotor pump (Powder rotor pump): This pump is especially designed to transport material with larger powders. Its unique shape and curve makes it more outstanding, as compared with other pumps in delivering material with larger powders. It effectively prevents powders from clashing, which is the top choice of pumps transferring material with powders.
1. Food industry: milk, ice cream, bear, yogurt, cosmetic, soap, toothpaste, butter, and hair dye.
2. Pharmaceutical: emulsion, syrup, nutrition, menstruum, Chinese medicine.
3. Chemical industry: plastic, dyestuff, solvent, dope, lubricant.
| Model | Discharge (L) | Speed range (RPM) | Flow (L/H) | Motor power (KW) | Size of connection | L | H | H1 | W | W1 | Connection type |
| 3L | 200-500 | 300-800 | 0.55 | 25×1.5 | 710 | 290 | 150 | 150 | 240 | ||
| 6L | 200-500 | 650-1600 | 0.75 | 25×1.5 | 780 | 390 | 170 | 190 | 240 | ||
| 8L | 200-500 | 850-2160 | 1.5 | 32×1.5 | 850 | 400 | 170 | 190 | 280 | ||
| 12L | 200-500 | 1300-3200 | 2.2 | 38×1.5 | 980 | 450 | 185 | 220 | 330 | clamp screw flange | |
| 20L | 200-500 | 2100-5400 | 3 | 38×1.5 | 1000 | 450 | 190 | 250 | 330 | ||
| 30L | 200-400 | 3200-6400 | 4 | 50.8×1.5 | 1050 | 480 | 220 | 270 | 350 | ||
| 36L | 200-400 | 3800-7600 | 4 | 42×1.5 | 1100 | 490 | 220 | 270 | 360 | ||
| 52L | 200-400 | 5600-11000 | 5.5 | 50.8×1.5 | 1250 | 580 | 260 | 270 | 480 | ||
| 66L | 200-400 | 7100-14000 | 7.5 | 63.5×1.5 | 1350 | 600 | 260 | 270 | 480 | ||
| 78L | 200-400 | 9000-18000 | 7.5 | 63.5×1.5 | 1260 | 600 | 295 | 370 | 480 | ||
| 100L | 200-400 | 11000-22000 | 11 | 76×2 | 1320 | 670 | 295 | 370 | 480 | ||
| 135L | 200-400 | 15000-30000 | 15 | 89×2 | 1500 | 670 | 295 | 370 | 480 | ||
| 160L | 200-400 | 17000-34000 | 18.5 | 102×3 | 1500 | 720 | 320 | 420 | 560 | ||
| 200L | 200-400 | 216000-43000 | 22 | 102×3 | 1500 | 720 | 320 | 420 | 560 |
Note: 1. we can design custom products according to customer's requirement.
2. Specifications are subjected to change without further notice.
