Forced Circulation Evaporator
Request a Quote

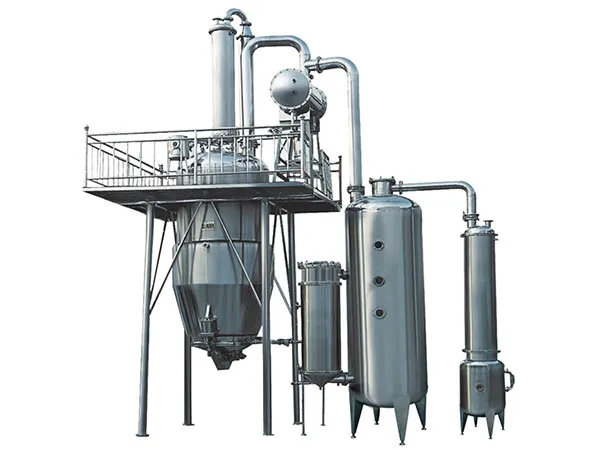

Forced Circulation Evaporator

  • The forced circulation evaporator features enlarged heating surface and high concentration efficiency. Constructed with stainless steel, smooth inner wall of the tanks ensures easy clean.
  • The extraction and concentration can be performed at low temperature in the same enclosed tank, allowing for 8% increase in extraction rate, high effective composition, and minimal loss.
  • A large condensation area is beneficial to condensation and recovery of solvent, ensuring low solvent loss and a recovery rate of more than 95%.
  • Maximizing the use of residual heat greatly reduces repeated heating and cooling, lowering energy consumption.
  • Compact structure, small floor area occupied, few operators needed, low production cost
  • Fully enclosed production reduces pollution to the environment, meeting the GMP requirements.
Technical parameters
Model and specification RCN-500 RCN-1000 RCN-2000 RCN-3000 RCN-6000
Volume(L) 500 1000 2000 3500 6000
Raw material capacity(Kg) 100-200 200-400 300-700 500-1000 900-2000
Time (h) 3-6 4-6 5-7 5-8 7-9
Concentration 1.2-1.35 1.2-1.35 1.2-1.35 1.2-1.35 1.2-1.35
Dimension 2.5×1.5×5.0 3.0×2.0×6.0 3.0×2.0×8.0 4.0×2.8×9.5 4.5×3.5×10.0
