Round Vacuum Concentration Tank

Round Vacuum Concentration Tank

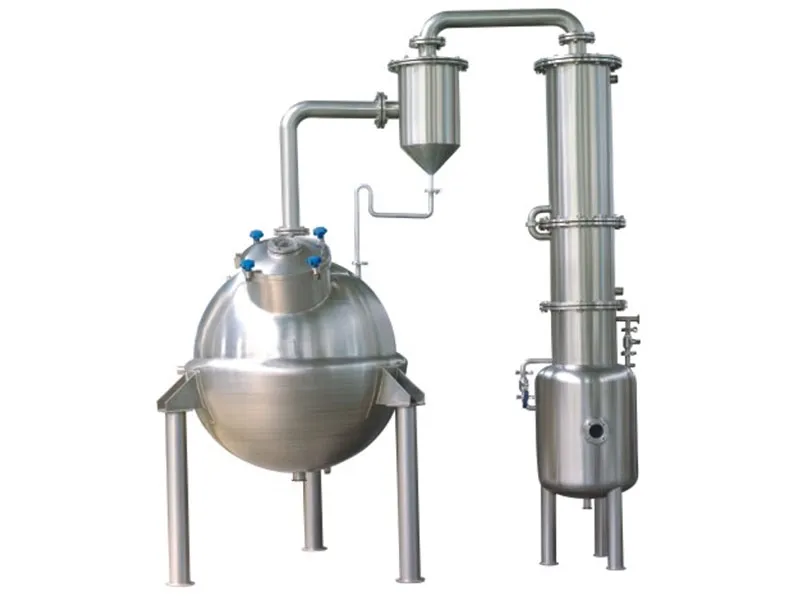

The round vacuum concentration tank consists of the main body, condenser, vapor-liquid separator and liquid reception barrel. It serves to concentrate, distill the material liquid and reclaim organic solvent in the pharmacy, foodstuff and chemistry industries. The reduced pressure concentration shortens concentration time and preventing the destruction of the effective content in the thermal sensitive material. The concentration tank parts contacted with the material are all made of stainless steel, which with qualified anti-corrosion performance, meeting with the GMP standard.

Inquiry
Technical parameters
Model and specification QN-300 QN-500 QN-700 QN-1000 QN-1500 QN-2000
Evaporating capacity(kg/h) 70 120 145 195 250 350
Volume (L) 300 500 700 1000 1500 2000
Ball inner diameter(mm) 800 990 1115 1250 1400 1600
Steam pressure 0.15
Vacuum degree(MPa) -0.05～-0.08
Heating area 1.6 2 2.3 3.2 4 5.2
Condensing area(m2) 3.9 5 5.8 8.2 11 16
Dimension 1900×1100×2300 2030×1200×2500 2100×1300×2500 2335×1520×2765 2500×1700×2900 2750×1800×3100
Water consumption(T/h) 5 5 8 8 10 12
Steam inlet(mm) 32 32 32 40 40 40
Water inlet and outlet 32 32 40 40 50 50

Note: Our round vacuum concentration tank can be made according to customer's requirement.

Wenzhou Longqiang Machinery Tech. CO., LTD is a major concentration tank and evaporator manufacturer based in China. We specialize in manufacturing food process machinery and bio-pharmaceutical engineering for almost 30 years. Our equipment is high quality, economically-priced, durable and safety. Our company is located in Wenzhou City, the coastal city of East China Sea, where we have access to convenient transportation by sea, land and air. Thus, our purchasing cost can be greatly reduced, as well the shipping fees for customers.
Suppose you are in need of dairy process equipment, please feel free to contact us. We look forward to providing superior quality products and excellent service to you.
