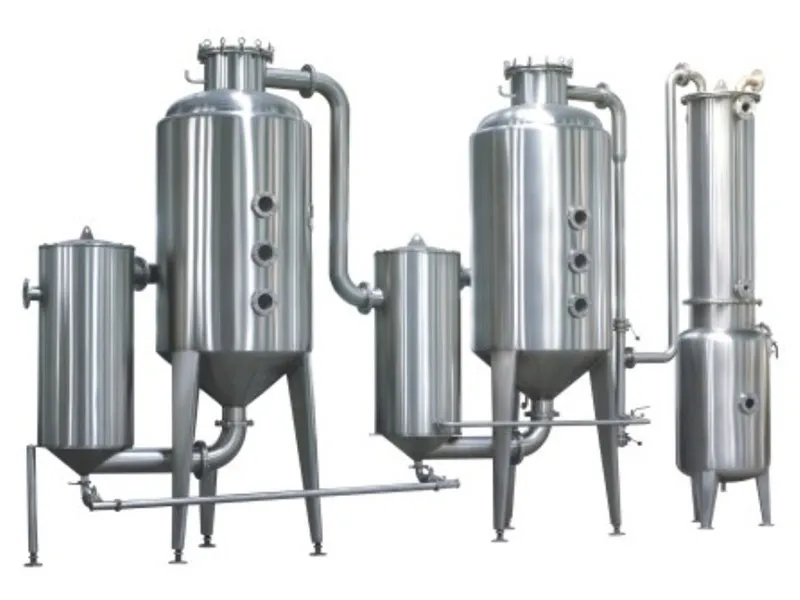

This double effect evaporator is suitable for concentrating the fluid materials and it is widely used in industries for making traditional medicine, western medicine, grape sugar, starch, gourmet powder, food and milk products, chemical products, etc.
Our evaporator is especially suitable for thermal sensitive material low temperature vacuum concentration.
1. Energy-saving
According to SJN-1000, our double effect evaporator can save 3500 tons, 90000 tons and 80000 watt of vapor, water and electric each year, respectively. This means that we can save 15,000-22,400 USD each year.
2. This double effect evaporator uses outer-heated natural cycle and vacuum negative pressure evaporation mode.Hence, it features quick evaporation and the concentration proportion is 1.2-1.35. By using this evaporator for making China traditional immerse cream, there is no need for open-month pan for cream collection.
3. The evaporator uses dual-effect to synchronously vapor. The client can lower investment in boiler purchasing and the energy consumption is 50% less than that of the single-effect evaporator.
4. Feature of multiple function
(1) The concentration of reclaimable alcohol is about 80%.
(2) Material feeding
The intermittently and continuous material feeding are available.
5. As the special structure of our double effect evaporator, the concentrated material usually features rich smell and great uniformity. The concentration under the seal and non-bubble condition can prevent material loss and pollution.
6. The parts contacted with material are all made of SUS304. The insulation layer made using polyurethane is available at the heater and evaporator. The external surface is mirror finished, meeting with the GMP standard.
Model and specification | SJNⅡ500 | SJNⅡ1000 | SJNⅡ1500 | SJNⅡ2000 | SJNⅡ3000 | |
Max evaporating capacity | 500 | 1000 | 1500 | 2000 | 3000 | |
Steam pressure (MPa) | 0.03-0.09 | |||||
Steam consumption (kg/h) | 250 | 500 | 750 | 1000 | 1500 | |
Water consumption (T/h) | 5 | 10 | 15 | 15 | 25 | |
Outer heater heating area (m2) | 8 | 10 | 16 | 22 | 26 | |
Double effect second condensing area(m2) | 16 | 20 | 26 | 32 | 38 | |
Steam pipe orifice (mm) | 40 | 50 | 50 | 65 | 80 | |
Cooling water orifice(mm) | 50 | 50 | 65 | 65 | 65 | |
Dimension | L | 4000 | 5000 | 6500 | 5500 | 6800 |
W | 1500 | 1700 | 1800 | 2000 | 2000 | |
H | 3300 | 3500 | 4000 | 4200 | 4500 | |
Evaporating temperature | First effect | 80-90 | ||||
Second effect | 55-70 | |||||
Designed pressure | 0.09 | |||||
Vacuum degree | First effect | -0.04 | ||||
Second effect | -0.06 | |||||
Concentration radio | 1.1-1.3 |
Note: we can design custom product according to customer's requirement.
