Evaporation Systems for Food and Beverage Industry

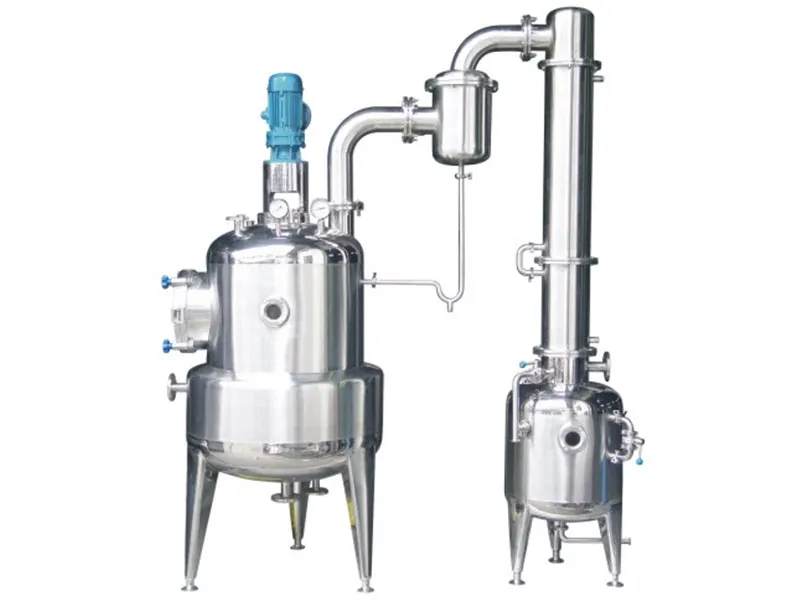

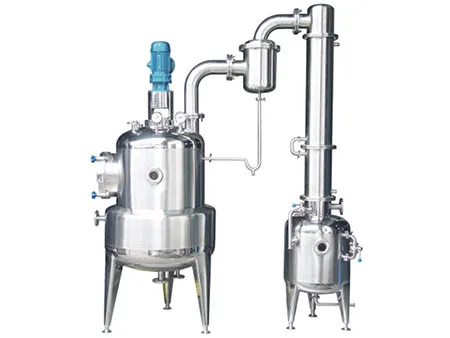

Our vacuum pressure reduction concentration tanks are composed of concentration tank, condenser, vapor-liquid separator, cooler and liquid reception tank etc. The concentration tank is designed with jacket structure. Condenser is in pipe tube. Cooler is in coil type.
This concentration tank could be used for concentration and alcohol recovery
| Model and specification | ||||||||
| Volume(L) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | |
| Liquid receiving tank volume(L) | 35 | 45 | 60 | 76 | 100 | 125 | 165 | |
| Pressure in the jacket (MPa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |
| Vacuum degree(MPa) | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | |
| Heating area(m2) | 0.25 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 | 2.2 | |
| Condensing area(m2) | 1.2 | 1.7 | 2.4 | 3.0 | 3.3 | 3.6 | 4.1 | |
| Cooling area(m2) | 0.29 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.05 | |
| Dimension | 600 | 750 | 800 | 1000 | 1200 | 1300 | 1300 | |
| W | 1200 | 1350 | 1700 | 1700 | 2100 | 2400 | 2390 | |
| H | 2200 | 2200 | 2700 | 3400 | 3400 | 3400 | 3720 | |
Note: we can design custom product according to customer's requirement.
Wenzhou Longqiang Machinery Tech. Co., Ltd. is a China-based, professional concentration tank and evaporator manufacturer, in operation since 1984. Our food process equipment, like dairy production lines, beverage production lines, water production lines, sanitary stainless steel vessels and food sterilization equipment, and more, are all manufactured strictly according to ISO9001:2008 quality management system, resulting in high quality and good performance. Thus, our products have been exported to Japan, Malaysia, Myanmar, Vietnam, Nepal and many other countries.
If you are interested in our dairy process equipment, please feel free to contact us for a consultation. We look forward to working with you.
