Evaporation Systems for Food and Beverage Industry
1. Alcohol recovery
The large recovery capacity and vacuum operation mode improve the technological process flow. The recovery of alcohol is more than 95% and the loss rate is below 5%. The power consumption is reduced by 30%. Hence, our multifunctional alcohol recovery evaporator is a type of energy-saving equipment with economical investment and high reclamation economy profit.
2. Concentrated liquid material

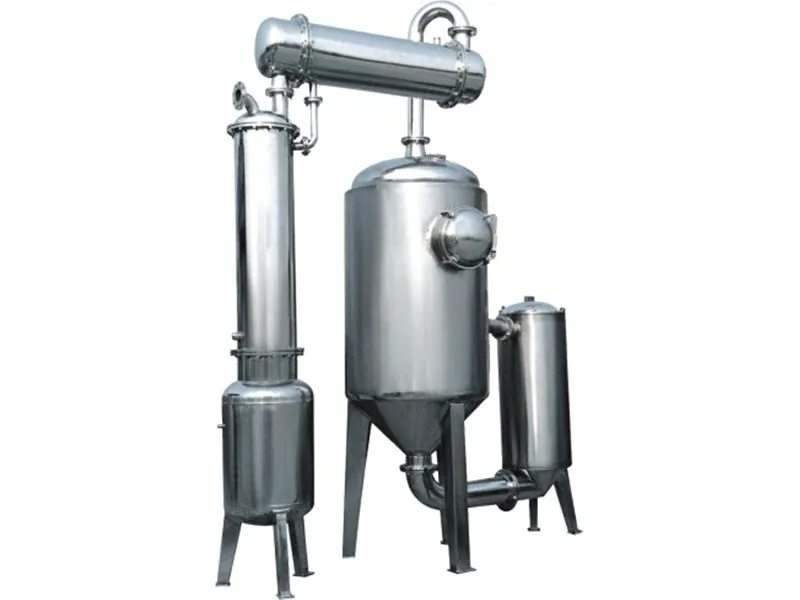

The alcohol recovery evaporator uses outer-headed natural cycle and vacuum negative pressure evaporation mode. It features fast evaporation and its concentration proportion is 1.3-1.4.
Our evaporator is easy to handle and it needs a little foundation area for installation. The heater and evaporator use stainless steel for thermal purpose. The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.
| Model \ Item | ||||
| Evaporation capacity (Kg/h) | 500 | 1000 | 1500 | |
| Alcohol recovery | 200Kg/h | 3500 Kg/h | 500 Kg/h | |
| Recovery concentration | 85C alcohol degree | |||
| Working Pressure | 0.03 - 0.09MPa | |||
| Temperature | 40-85℃ | |||
| Vacuum degree | 620mmHg | |||
| Concentration ratio | 1.2-1.4 | |||
| Weight | 1300kg | 1850kg | 2850kg | |
| Overall dimension (mm) | Length | 2000 | 2200 | 2500 |
| Width | 1000 | 1200 | 1300 | |
| Height | 3000 | 3300 | 3500 | |
Note: we can design custom product according to customer's requirement.
Wenzhou Longqiang Machinery Tech. Co., Ltd. is a professional concentration tank and evaporator manufacturer based in China. We are specializing in making food process machine and pharmaceutical engineering, especially for dairy processing equipments. They are of high quality and competitive price, thus, they have been exported to Nepal, Panama, Chile, Algeria and the United Arab Emirates, and many other countries.
For more information, please feel free to contact us. We look forward to working with you.
